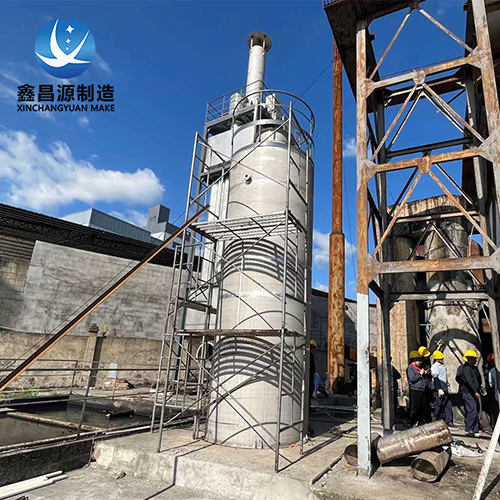

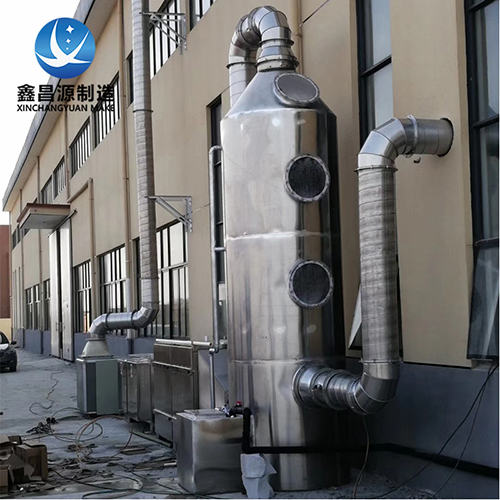

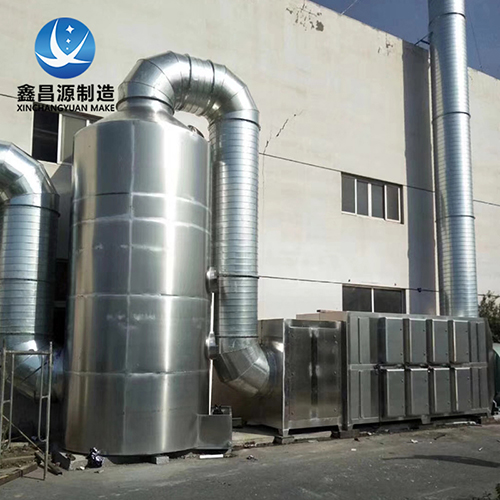

304 Stainless Steel Scrubber Tower

Product Overview

The 304 stainless steel scrubber tower is a wet gas scrubbing device used to remove acid mist, alkaline gas, SO₂, HCl, dust and other soluble pollutants from industrial exhaust gas. It is also called a stainless steel scrubber, gas washing tower, spray scrubber, exhaust gas scrubber or wet scrubber tower.

Exhaust gas enters the tower from the bottom or side and flows upward through the spray and packing section. Absorption liquid such as water, NaOH solution or process liquid is sprayed from the top through nozzles, forming a liquid film on the packing surface. Pollutants in the gas phase are absorbed, neutralized or captured through gas-liquid contact, and the purified gas passes through a demister before discharge.

The tower body is made of 304 stainless steel, which provides higher structural strength, better temperature resistance and longer service life than plastic towers when treating high-temperature, mildly corrosive or continuous-operation exhaust gas.

Why 304 Stainless Steel Scrubber Tower

304 stainless steel scrubber towers are suitable for industrial gas treatment where mechanical strength, temperature resistance and long-term reliability are required. Compared with PP or FRP scrubbers, 304 stainless steel offers better structural stability, higher temperature tolerance and more consistent performance under continuous operation.

The smooth inner surface of stainless steel helps reduce scaling and improves liquid distribution inside the tower. This supports stable absorption efficiency, easier maintenance and consistent emission performance. The tower can be integrated with spray systems, packing layers, demisters, circulation tanks, pH dosing systems and downstream polishing equipment according to process requirements.

Structure & Working Principle

The scrubber tower is a vertical cylindrical vessel made of 304 stainless steel, with gas inlet, gas outlet, inspection door, drain connection and supporting structure. Exhaust gas flows through the tower while absorption liquid is circulated by a pump and sprayed through nozzles.

Inside the tower, the packing layer increases gas-liquid contact area and improves absorption efficiency for acid mist, alkaline gas and soluble pollutants. The demister section removes entrained droplets from purified gas to reduce carryover and downstream corrosion. The circulation tank collects absorption liquid for reuse, with optional pH monitoring and dosing system to maintain stable neutralization performance.

Material Selection Guidance

304 stainless steel is a cost-effective option for scrubber towers handling mildly corrosive, elevated-temperature or low-chloride exhaust gas. It provides good general corrosion resistance and stable mechanical strength, making it suitable for many chemical, electroplating, metal surface treatment and manufacturing exhaust gas applications.

For exhaust gas with higher chloride content, strong acid mist or long-term wet corrosion, 316L or 2205 stainless steel is usually more suitable. 316L offers better chloride resistance due to molybdenum content, while 2205 duplex stainless steel provides higher strength and excellent resistance to chloride pitting and stress corrosion cracking. Material selection should be based on gas composition, temperature, humidity, chloride concentration and expected service life.

Typical Specifications

The tower is manufactured from 304 stainless steel, SUS304 or 1.4301 grade, in vertical scrubber tower or spray scrubber configuration. Diameter is typically customized between 800 mm and 4000 mm, and height is determined according to packing height, spray stages and site conditions. Wall thickness is generally designed between 2 mm and 4 mm depending on diameter, structural load and process requirements.

Internal parts include packing, spray nozzles, demister, circulation pump, piping and supporting structures. Exact dimensions, number of spray layers, packing type and connection configuration should be determined according to gas volume, pollutant concentration, temperature, humidity and installation conditions.

Typical Applications

304 stainless steel scrubber towers are widely used in chemical plants, electroplating lines, metal surface treatment facilities, pickling lines, semiconductor and electronic manufacturing, pharmaceutical and food processing, metallurgical and sintering flue gas pretreatment, waste incineration gas washing, boiler and kiln exhaust gas treatment, as well as dust and mist removal systems. They can also be arranged upstream of WESP systems, activated carbon adsorbers or RTO units to reduce acid mist, dust and moisture load before downstream polishing.

Manufacturing & Company Strength

Wuxi Xinchangyuan Equipment Manufacturing Co., Ltd. specializes in the design and manufacture of stainless steel scrubber towers, spray towers, absorption towers, wet electrostatic precipitators, anode modules and anode tube bundles. Our facility is equipped with plate rolling, laser cutting, CNC forming, automatic welding, surface treatment and module assembly capabilities, supporting both standard and customized stainless steel process equipment for industrial exhaust gas purification.

We provide engineering support from material selection and structural design to fabrication, assembly and installation guidance. Each scrubber tower is manufactured according to project gas composition, temperature, corrosion level and site layout. Our team can integrate scrubber towers with wet electrostatic precipitators, demisters, circulation systems and exhaust gas purification lines, helping industrial customers achieve stable emission performance and reliable long-term operation.

FAQ

What is a 304 stainless steel scrubber tower used for?
It is used to remove acid mist, alkaline gas, SO₂, HCl, dust and other soluble pollutants from industrial exhaust gas through wet scrubbing and gas-liquid contact.

When should 304 be upgraded to 316L or 2205?
If the exhaust gas contains high chloride ions, strong acid mist or long-term wet corrosion, 316L or 2205 is usually more reliable than 304.

Can the scrubber tower be customized?
Yes. Tower diameter, height, wall thickness, packing type, spray layers, demister and circulation system can be customized according to actual process conditions.

Can it be used together with a WESP system?
Yes. A scrubber tower can be arranged upstream of a WESP to reduce acid mist, dust and moisture load, helping the downstream polishing system operate more stably.
