316L Stainless Steel Absorption Tower

Product Overview

The 316L stainless steel absorption tower is a wet gas absorption vessel used to remove acidic pollutants, water-soluble gases and selected VOC components from industrial exhaust streams. It is also called a 316L absorption tower, 316L stainless steel scrubber, acid gas absorption tower, alkali absorption tower, gas washing tower or packed absorption tower.

Exhaust gas enters the tower from the bottom or side and flows upward through the packing and spray section. Absorption liquid such as water, alkaline solution or a specialized reagent is sprayed from the top, forming a liquid film on the packing surface. Acidic and water-soluble components are absorbed through gas-liquid contact, and the purified gas passes through a demister before discharge.

316L stainless steel contains molybdenum, giving it significantly better resistance to chloride-induced corrosion and wet corrosive environments than 304 stainless steel. This makes 316L absorption towers especially suitable for chemical, pharmaceutical, electroplating, petrochemical and coastal industrial applications where long-term reliability is required.

Why 316L Stainless Steel for Absorption Towers

Absorption towers often operate under wet, corrosive and fluctuating conditions. Acid mist carryover, chloride ions, temperature variation, condensate formation and continuous water contact can accelerate material degradation. While 304 stainless steel is suitable for mildly corrosive service, it may be insufficient for exhaust streams with higher chloride content or long-term wet corrosion.

316L stainless steel provides a higher safety margin than 304 in wet corrosive environments. Its molybdenum content improves resistance to pitting and crevice corrosion, while its austenitic structure offers good weldability, formability and fabrication reliability for absorption tower shells, packing supports, spray systems and circulation components.

Structure & Working Principle

The 316L stainless steel absorption tower is a vertical cylindrical vessel made of 316L stainless steel, with gas inlet, gas outlet, inspection door, drain connection and supporting structure. Exhaust gas flows through the tower while absorption liquid is circulated by a pump and sprayed through nozzles.

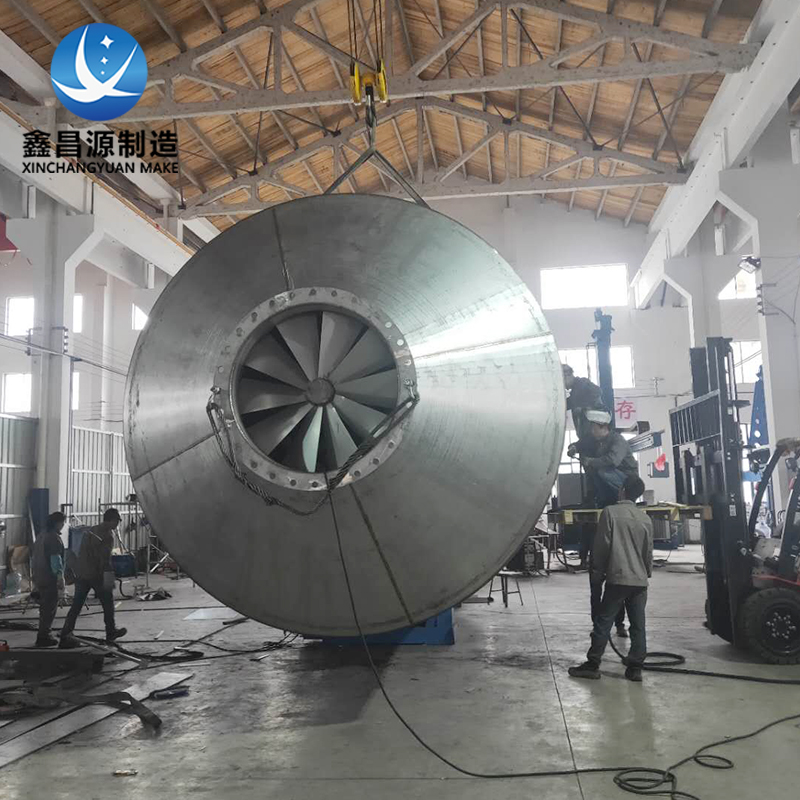

Inside the tower, the packing layer increases gas-liquid contact area and improves absorption efficiency for acid gases and water-soluble pollutants. The demister section removes entrained droplets from purified gas to reduce carryover and downstream corrosion. The circulation tank collects absorption liquid for reuse, with optional pH monitoring, automatic dosing, temperature control and filtration systems.

Typical Specifications

The tower is manufactured from 316L stainless steel in vertical absorption tower or packed scrubber configuration. Diameter is typically customized between 800 mm and 4000 mm, and height is determined according to packing height, spray stages and site conditions. Wall thickness is generally designed between 2 mm and 4 mm depending on diameter, structural load and process requirements.

Internal parts include packing, spray nozzles, demister, circulation pump, piping, inspection ports and supporting structures. Exact dimensions, number of spray layers, packing type and connection configuration should be determined according to gas volume, pollutant concentration, temperature, humidity and installation conditions.

Typical Applications

316L stainless steel absorption towers are widely used in chemical plant acid gas absorption, pharmaceutical and food industry exhaust gas treatment, electroplating and metal surface treatment exhaust, pickling line HCl and HF gas absorption, petrochemical off-gas washing, semiconductor facility acid gas neutralization, waste incineration flue gas washing, metallurgical flue gas pretreatment, laboratory exhaust gas treatment, as well as wet desulfurization and denitrification polishing systems. They can also be arranged upstream of WESP systems, activated carbon adsorbers or RTO units to reduce acid mist, dust and moisture load before downstream polishing.

Manufacturing & Company Strength

Wuxi Xinchangyuan Equipment Manufacturing Co., Ltd. specializes in the design and manufacture of stainless steel absorption towers, alkali scrubber towers, spray towers, wet electrostatic precipitators, anode modules and anode tube bundles. Our facility is equipped with plate rolling, laser cutting, CNC forming, automatic welding, surface treatment and module assembly capabilities, supporting both standard and customized stainless steel process equipment for industrial exhaust gas treatment.

We provide engineering support from material selection and structural design to fabrication, assembly and installation guidance. Each 316L absorption tower is manufactured according to project gas composition, acid gas load, temperature, corrosion level and site layout. Our team can integrate absorption towers with wet electrostatic precipitators, demisters, circulation systems and exhaust gas purification lines, helping industrial customers achieve stable emission performance and reliable long-term operation.

FAQ

What is a 316L stainless steel absorption tower used for?
It is used to absorb and remove acid gases, water-soluble pollutants and selected VOC components from industrial exhaust gas through wet gas-liquid contact.

Why choose 316L instead of 304 for absorption towers?
316L contains molybdenum and offers higher resistance to chloride-induced pitting, crevice corrosion and wet corrosive environments than 304, making it more reliable for acid mist carryover and long-term wet operation.

Can the 316L absorption tower be customized?
Yes. Tower diameter, height, wall thickness, packing type, spray layers, demister and circulation system can be customized according to actual process conditions.

Can it be used together with a WESP system?
Yes. A 316L absorption tower can be arranged upstream of a WESP to reduce acid mist, dust and moisture load, helping the downstream polishing system operate more stably.
