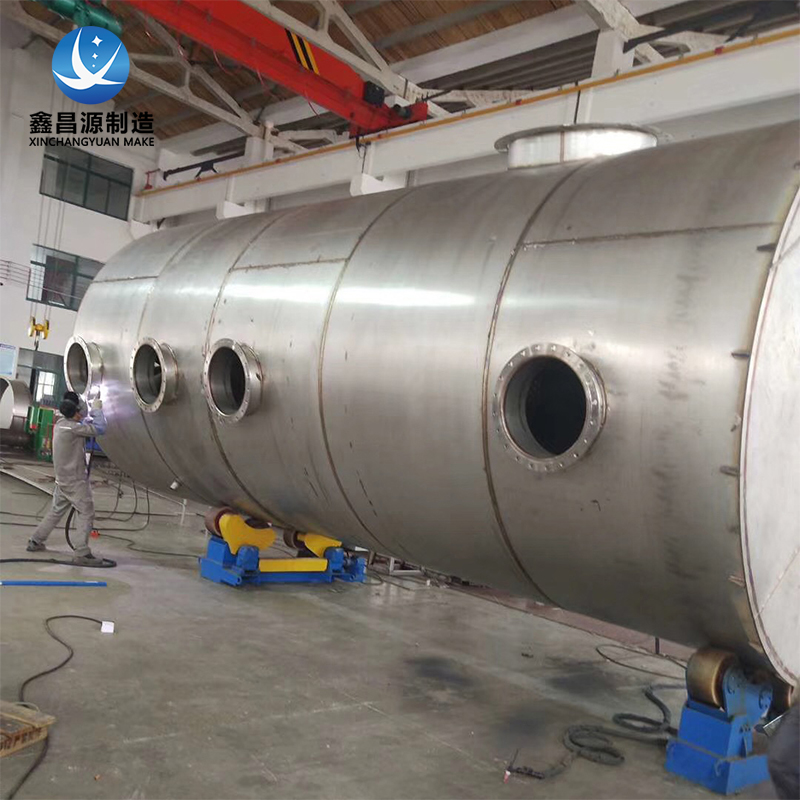

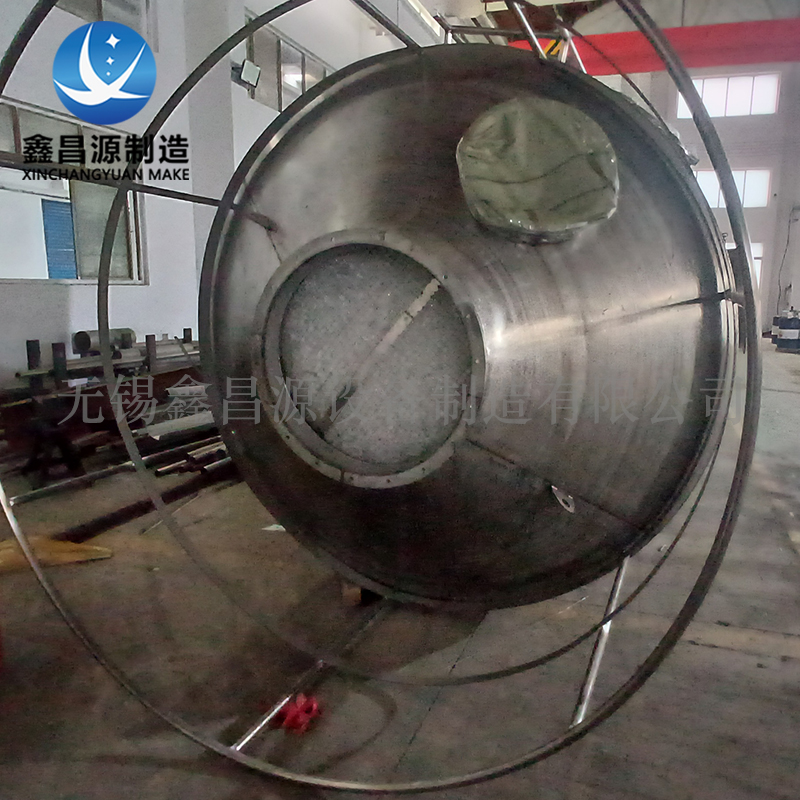

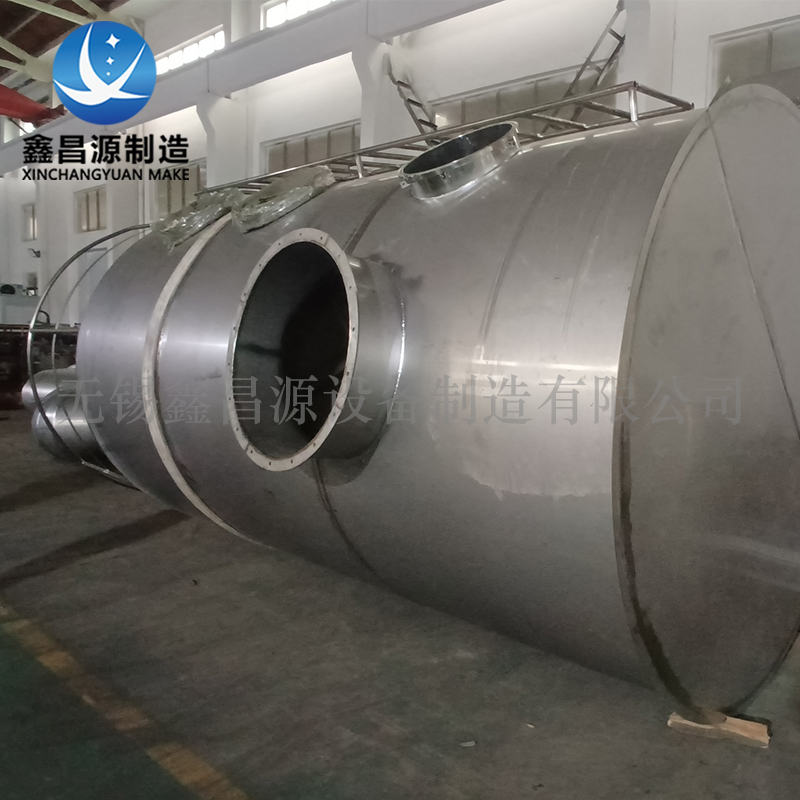

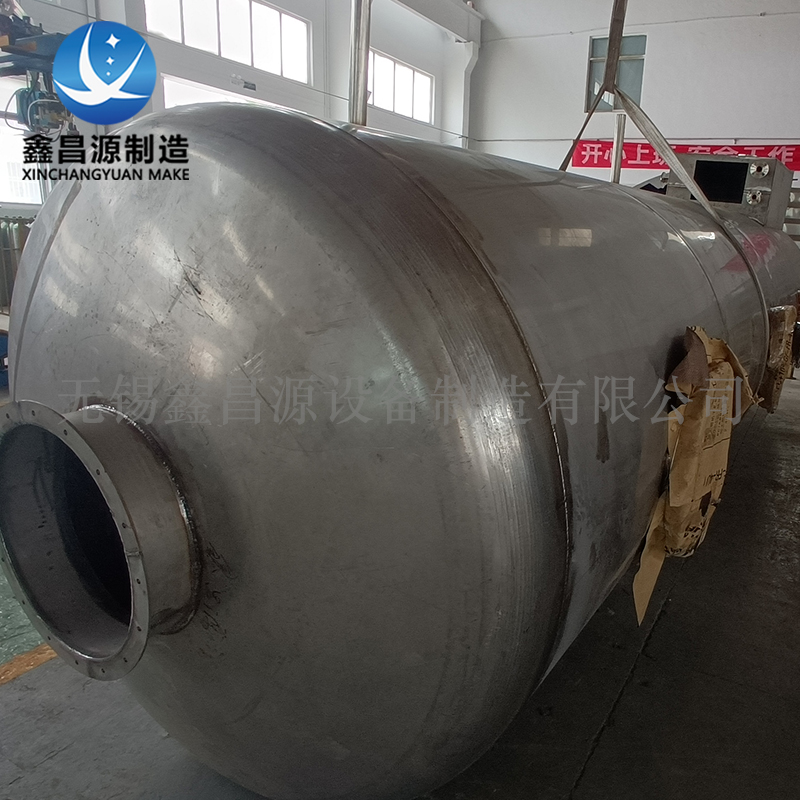

Water Curtain Dust Collector

Product Overview

The water curtain dust collector is a wet dust collection device that uses a continuous water film or water curtain to capture paint mist, oil mist, dust and fine particulates from industrial exhaust air. It is also called a water curtain dust collector, water film dust collector, wet dust collector, water curtain spray booth or water curtain scrubber.

Contaminated air is drawn through the equipment by an exhaust fan. As the airflow passes the water curtain plate or water film surface, dust and sticky particles impact the water layer and are captured. The pollutants mix with circulating water, settle into the water tank, and the cleaned air passes through a demisting section before discharge. For painting and coating applications, the water curtain dust collector is mainly used as a paint mist pretreatment unit to protect downstream VOC treatment systems.

Stainless steel construction provides higher structural strength, better corrosion resistance and longer service life than carbon steel or non-metallic housings, especially for wet, humid and paint mist-laden environments.

Why Stainless Steel Water Curtain Dust Collector

Water curtain dust collectors operate under continuous water contact and high humidity. Paint mist, oil mist, chemical condensate and cleaning agents can cause corrosion, scaling and material degradation over time. Stainless steel housings resist wet corrosion better than painted carbon steel and offer better dimensional stability than thin non-metallic panels for industrial exhaust systems.

Stainless steel water curtain dust collectors are suitable for coating lines, machining workshops, woodworking facilities, chemical plants and industrial processes where exhaust air contains sticky paint mist, oil mist, moisture or corrosive components. They can be designed as water curtain booths, water film collectors, wet dust collection cabinets or integrated pretreatment units for exhaust gas treatment lines.

Structure & Working Principle

The water curtain dust collector consists of a stainless steel housing, water curtain plate, water tank, circulation pump, spray or water supply system, demister, exhaust fan connection and supporting structure. Exhaust air enters the collector and passes through the water curtain zone.

The water curtain is formed by a controlled water flow over a stainless steel curtain plate or through a spray and water film section. Paint mist and dust particles collide with the water film and are captured. Captured pollutants settle into the water tank, while purified air passes through a demister or drift eliminator to reduce water droplet carryover. The circulation system can be equipped with filtration, oil separation, sludge removal and level control options.

For high paint mist loads, the water curtain section can be combined with additional spray stages, baffle plates or water separation zones to improve capture efficiency and reduce maintenance frequency.

Typical Specifications

The water curtain dust collector is manufactured from stainless steel in booth, cabinet or compact collector configuration. Size, airflow capacity and water curtain layout are customized according to exhaust air volume, pollutant type, installation space and integration with downstream treatment equipment.

Main components include stainless steel water curtain plate, water tank, circulation pump, spray or water distribution system, demister, inspection door, drain outlet and exhaust connection. Exact configuration should be determined according to paint mist load, dust characteristics, humidity, temperature and site layout.

Typical Applications

Stainless steel water curtain dust collectors are widely used in spray painting and coating booths, furniture and woodworking dust collection, metal machining and polishing workshops, chemical and pharmaceutical dust control, plastic and rubber processing exhaust pretreatment, stone and ceramic processing dust collection, as well as industrial processes generating sticky paint mist, oil mist or high-humidity dust. They can be integrated with spray towers, activated carbon adsorbers, RTO, RCO, WESP and other exhaust gas treatment systems as a wet pretreatment stage.

Manufacturing & Company Strength

Wuxi Xinchangyuan Equipment Manufacturing Co., Ltd. specializes in the design and manufacture of stainless steel environmental and process equipment, including wet electrostatic precipitators, absorption towers, spray towers, scrubber towers, anode modules and anode tube bundles. Our facility is equipped with plate rolling, laser cutting, CNC forming, automatic welding, surface treatment and module assembly capabilities, supporting both standard and customized stainless steel equipment for industrial exhaust gas treatment.

We provide engineering support from material selection and structural design to fabrication, assembly and installation guidance. Each water curtain dust collector is manufactured according to project exhaust air volume, pollutant characteristics, humidity, corrosion level and site layout. Our team can integrate water curtain dust collectors with spray towers, wet electrostatic precipitators and VOC treatment lines, helping industrial customers achieve stable pretreatment performance and reliable long-term operation.

FAQ

What is a water curtain dust collector used for?
It is used to capture paint mist, oil mist, dust and fine particulates from industrial exhaust air through water film or water curtain contact.

Can it remove solvent vapors or VOCs?
Not directly. A water curtain dust collector is mainly effective for paint mist, oil mist and particulate capture. Solvent vapors and VOCs usually require downstream treatment such as activated carbon adsorption, RTO or RCO.

When should 304 be upgraded to 316L or 2205?
If the exhaust air contains chemical mist, chloride ions, acid gas carryover or long-term wet corrosion, 316L or 2205 stainless steel is usually more reliable than 304.

Can it be customized for different workshop layouts?
Yes. Size, airflow capacity, water curtain configuration, tank volume and material grade can be customized according to actual process conditions and installation space.
