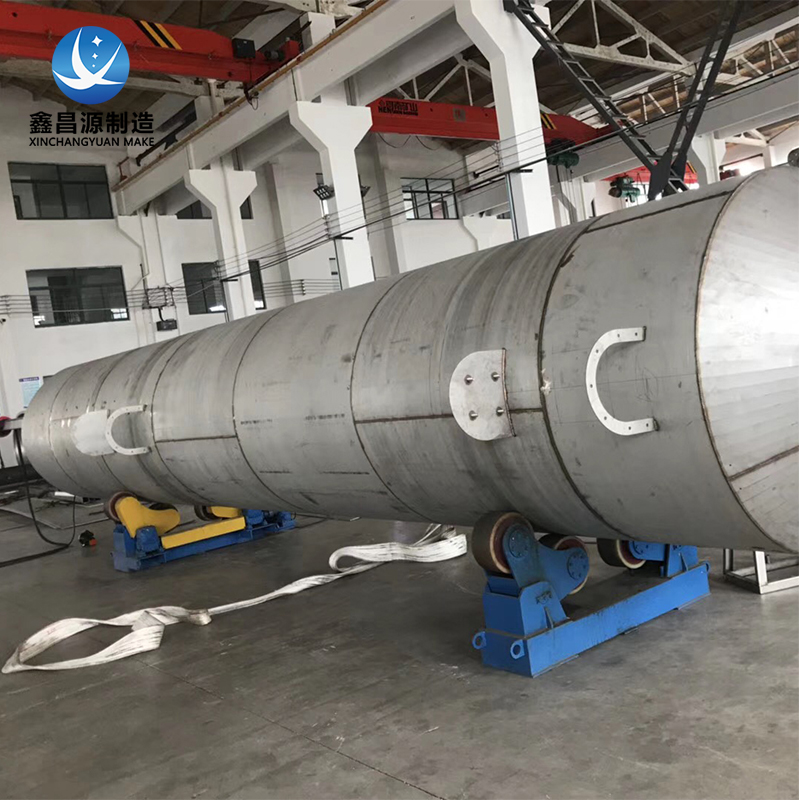

Stainless Steel Cyclone Tower

Product Overview

The stainless steel cyclone tower is a wet gas-liquid contact vessel that combines centrifugal separation with spray washing to remove dust, paint mist, oil mist, acid mist and water-soluble pollutants from industrial exhaust gas. It is also called a swirl plate tower, cyclone scrubber tower, gas-liquid cyclone tower, swirl spray tower or cyclone mist eliminator tower.

Exhaust gas enters the tower and passes through a swirl plate or cyclone section, where the airflow is guided into a rotating motion. The rotating gas stream atomizes circulating washing liquid into fine droplets and throws them toward the tower wall by centrifugal force. Pollutants are captured through inertial collision, liquid film adsorption and centrifugal separation, and the cleaned gas passes through a demisting section before discharge.

Stainless steel construction provides higher mechanical strength, better temperature resistance and longer service life than plastic or FRP towers, especially for high-humidity, high-dust and corrosive wet gas streams.

Why Stainless Steel Cyclone Tower

Cyclone towers are commonly used as pretreatment or primary scrubbing units in chemical, coating, metal surface treatment, pharmaceutical and general industrial exhaust systems. The internal environment involves continuous gas-liquid contact, high humidity, sticky particles and possible acid mist or chloride carryover.

Stainless steel cyclone towers are suitable for treating paint mist, oil mist, sticky dust, fiber dust, acid mist and water-soluble gases. Compared with ordinary spray towers, the cyclone or swirl plate structure enhances gas-liquid mixing and reduces the risk of packing blockage. Compared with dry cyclone separators, the wet cyclone tower can handle sticky and humid pollutants more reliably.

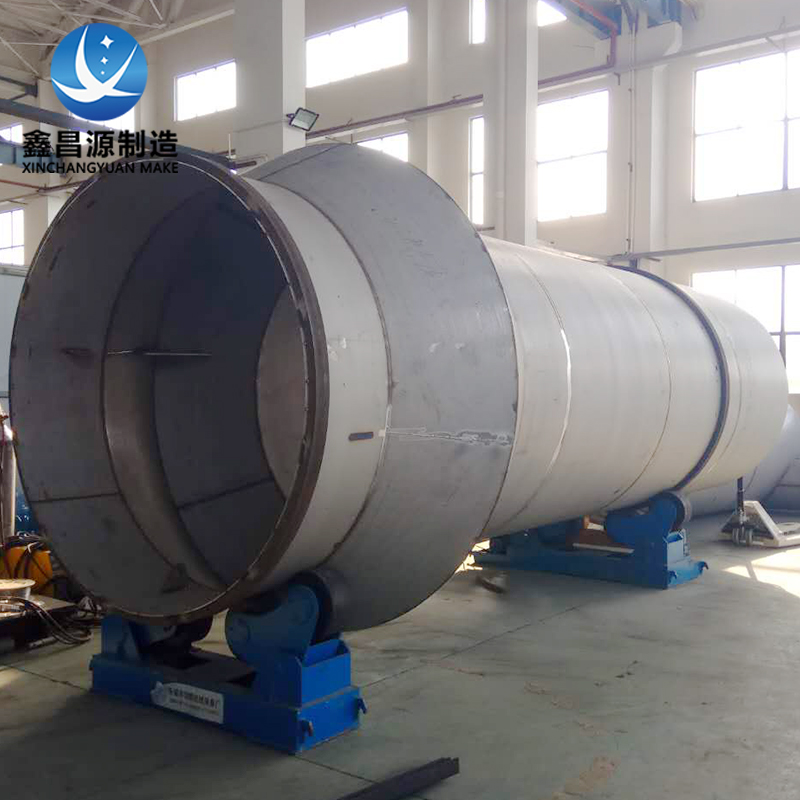

Structure & Working Principle

The stainless steel cyclone tower is a vertical cylindrical vessel equipped with a gas inlet, cyclone or swirl plate section, spray system, demister, circulation tank, drain outlet and inspection door. Exhaust gas flows upward through the tower while washing liquid is circulated from the top or intermediate section.

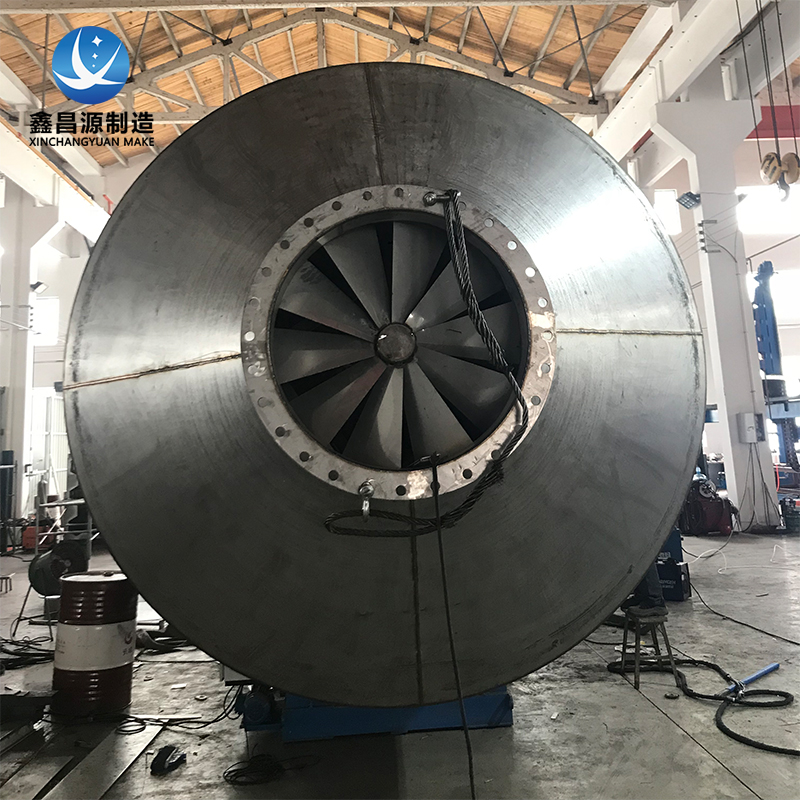

The core component is the swirl plate or cyclone section, which guides the gas into rotational flow. The rotating airflow atomizes the washing liquid and creates strong gas-liquid contact. Dust, paint mist, oil mist and acid mist are captured by droplets and liquid films, then separated toward the tower wall by centrifugal force. The separated liquid drains into the circulation tank, and purified gas passes through a demister before discharge.

Depending on process requirements, the tower can be designed with inward swirl plates for absorption and reaction, or outward swirl plates for mist elimination and dust separation.

Typical Specifications

The cyclone tower is manufactured from stainless steel in vertical tower configuration. Diameter, height, wall thickness and number of swirl plate stages are customized according to gas volume, pollutant load, temperature, pressure drop requirement and installation conditions.

Main components include stainless steel shell, swirl plate or cyclone section, spray nozzles, demister, circulation pump, drain outlet, inspection door and supporting structure. Exact design should be determined according to upstream process conditions, dust or paint mist characteristics, acid gas concentration and integration with downstream treatment equipment.

Typical Applications

Stainless steel cyclone towers are widely used in chemical plants, pharmaceutical facilities, metal surface treatment lines, coating and painting workshops, plastic and rubber processing, machinery manufacturing, food processing and general industrial exhaust gas pretreatment. They are suitable for removing dust, paint mist, oil mist, sticky particles, acid mist and water-soluble gases, and can be arranged upstream of activated carbon adsorbers, RTO, RCO, catalytic oxidation, biological treatment or WESP systems.

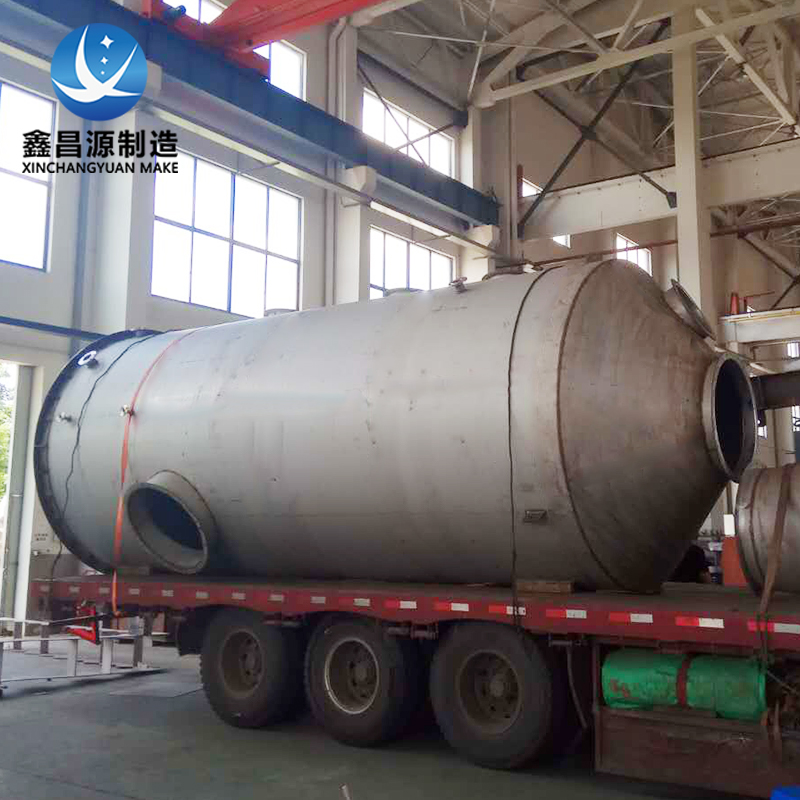

Manufacturing & Company Strength

Wuxi Xinchangyuan Equipment Manufacturing Co., Ltd. specializes in the design and manufacture of stainless steel environmental and process equipment, including wet electrostatic precipitators, absorption towers, spray towers, scrubber towers, anode modules and anode tube bundles. Our facility is equipped with plate rolling, laser cutting, CNC forming, automatic welding, surface treatment and module assembly capabilities, supporting both standard and customized stainless steel equipment for industrial exhaust gas treatment.

We provide engineering support from material selection and structural design to fabrication, assembly and installation guidance. Each stainless steel cyclone tower is manufactured according to project gas composition, dust and mist load, temperature, corrosion level and site layout. Our team can integrate cyclone towers with wet electrostatic precipitators, spray towers, absorption towers and VOC treatment lines, helping industrial customers achieve stable pretreatment performance and reliable long-term operation.

FAQ

What is a stainless steel cyclone tower used for?
It is used to remove dust, paint mist, oil mist, acid mist and water-soluble pollutants from industrial exhaust gas through centrifugal separation and wet scrubbing.

How is it different from a normal spray tower?
A cyclone tower uses a swirl plate or cyclone section to create rotating gas flow, improving gas-liquid mixing and reducing the risk of blockage for sticky dust and paint mist.

Which stainless steel grade should be selected?
304 is suitable for general wet pretreatment; 316L is recommended for acid mist and chloride environments; 2205 can be selected for high-chloride or severe corrosion conditions.

Can it be used as a standalone unit or with other equipment?
Yes. It can operate as a standalone wet scrubber or as a pretreatment stage upstream of activated carbon, RTO, RCO, WESP and other exhaust gas treatment systems.
