Wet Electrostatic Precipitator  (WESP) for Waste Incineration Plants

Product Overview

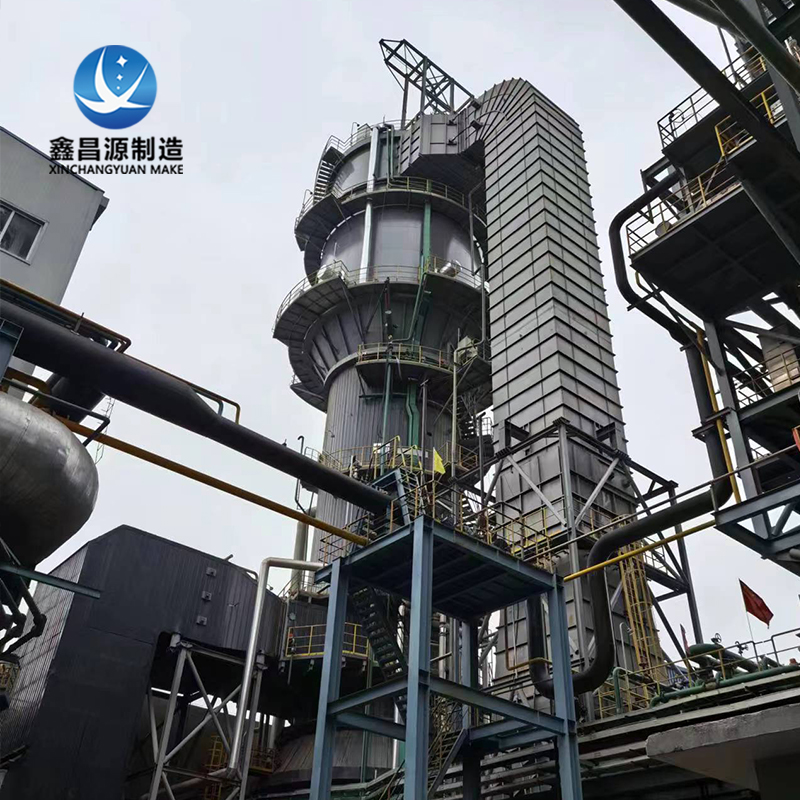

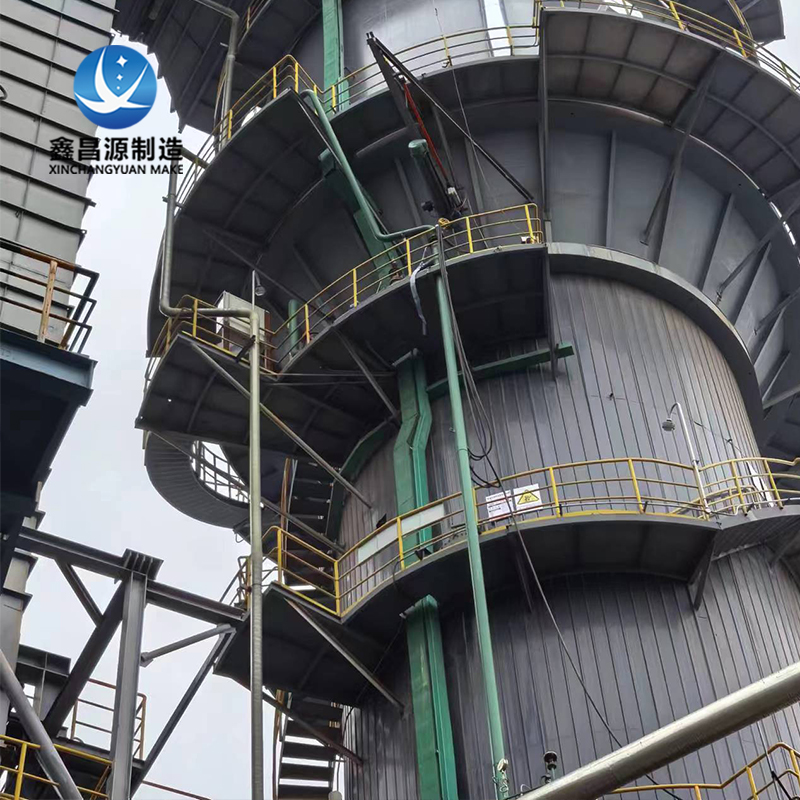

Our wet electrostatic precipitator for waste incineration plants is a customized WESP system designed for municipal solid waste incineration, waste-to-energy boilers and related flue gas treatment lines. It is typically installed after bag filters, semi-dry/ dry deacidification systems, activated carbon injection units or wet scrubbers to perform terminal deep purification of wet flue gas. The system can effectively remove fine particulate matter, PM2.5, acid mist, water droplets, aerosols, heavy-metal-containing particles and dioxin-adsorbed fly ash, helping waste incineration plants achieve stable ultra-low particulate emission performance.

The equipment adopts high-voltage electrostatic adsorption combined with wet flushing. Fine particles, mist droplets and aerosols are charged in the electric field, captured on the collecting electrode surface, and then washed away by circulating water. This wet cleaning method avoids mechanical rapping and reduces the risk of secondary dust emission, making it especially suitable for high-humidity, corrosive and fluctuating flue gas conditions after wet desulfurization or wet scrubbing in waste incineration plants.

How It Works

• Gas ionization and particle charging: High-voltage DC power generates a strong electric field between the anode tubes and cathode wires, causing gas ionization and particle charging.

• Fine particle and mist collection: Charged PM2.5, acid mist, droplets, aerosols and fine fly ash migrate to the collecting electrode and are captured on the electrode surface.

• Wet flushing cleaning: The flushing system forms a continuous water film to wash captured pollutants into the drain, preventing ash accumulation and secondary dust.

• Terminal polishing after APC system: When arranged after a bag filter, spray tower, wet scrubber or desulfurization system, the WESP further removes residual fine particles, mist droplets, aerosols and condensable pollutants from wet flue gas.

Key Features

• High removal efficiency for fine particles: effectively captures PM2.5, submicron particles, acid mist, droplets and aerosols from waste incineration flue gas.

• No secondary dust emission: wet flushing replaces mechanical rapping, improving outlet cleanliness and operational stability.

• Strong adaptability to MSW flue gas: suitable for waste incineration exhaust with high moisture, corrosive components and fluctuating working conditions.

• Stainless steel anode tube modules: anode modules, shell and internal components can be made from stainless steel or other corrosion-resistant materials according to flue gas properties.

• Flexible structural layout: available in vertical or horizontal type, with circular or square shell, and can be integrated with existing bag filters, scrubbers and desulfurization systems.

• Customized engineering supply: configured according to actual air volume, temperature, humidity, dust load and emission requirements.

Typical Applications

• Municipal solid waste incineration flue gas polishing

• Waste-to-energy boiler exhaust treatment

• Deep purification after bag filter, semi-dry deacidification or wet scrubber

• Removal of PM2.5, acid mist, droplets, aerosols and visible plume

• Terminal particulate control for waste incineration environmental upgrading projects

Manufacturing & Customization

Wuxi Xinchangyuan Equipment Manufacturing Co., Ltd. manufactures stainless steel WESP modules and supporting components for industrial flue gas treatment. The company’s capabilities include laser cutting, CNC shearing, CNC press brake forming, plate rolling, automatic welding and on-site assembly. Stainless steel anode tube modules, cathode systems, flushing systems and shell structures can be customized according to project air volume, installation space and process conditions, supporting both new waste incineration lines and retrofit projects.

FAQ

Can the waste incineration WESP be installed after an existing bag filter or wet scrubber?
Yes. It is commonly arranged after bag filters, spray towers, wet scrubbers or desulfurization systems to perform terminal deep purification of wet flue gas.

What pollutants can it remove?
It mainly removes fine particulate matter, PM2.5, acid mist, water droplets, aerosols and other condensable pollutants from wet incineration flue gas.

What materials can be used?
Anode modules, shell and internal components can be made from stainless steel or other corrosion-resistant materials based on flue gas composition and customer requirements.

Is the equipment available in different structures?
Yes. It can be supplied in vertical or horizontal structure, with circular or square shell, and can be customized according to site conditions.
