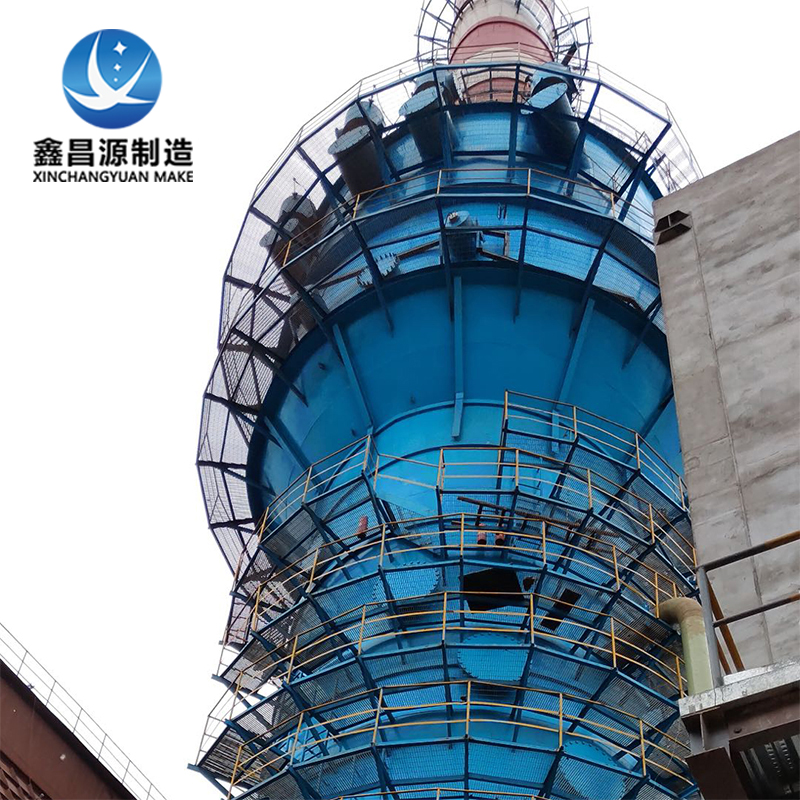

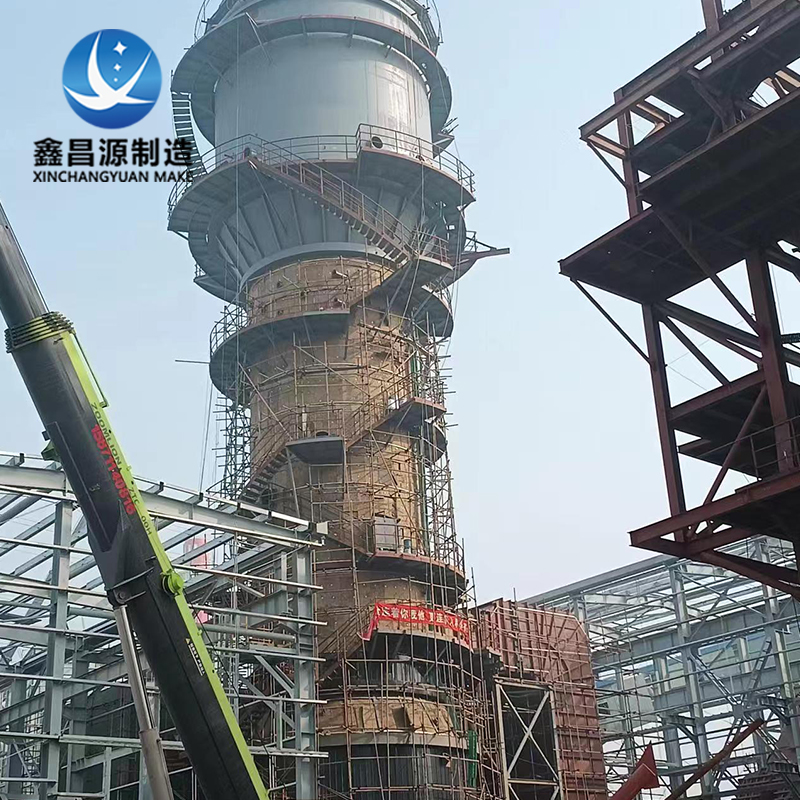

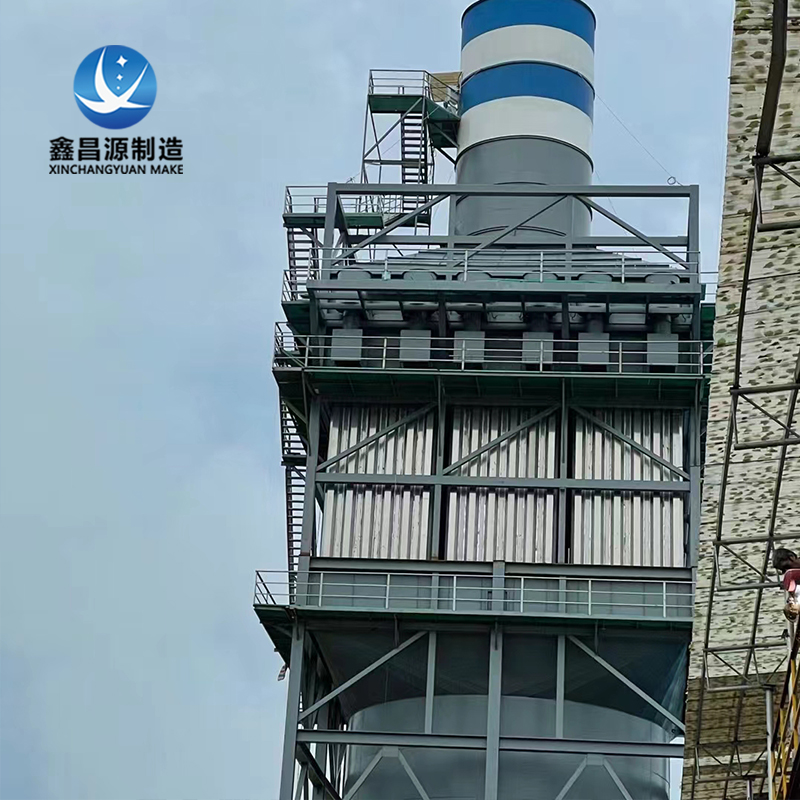

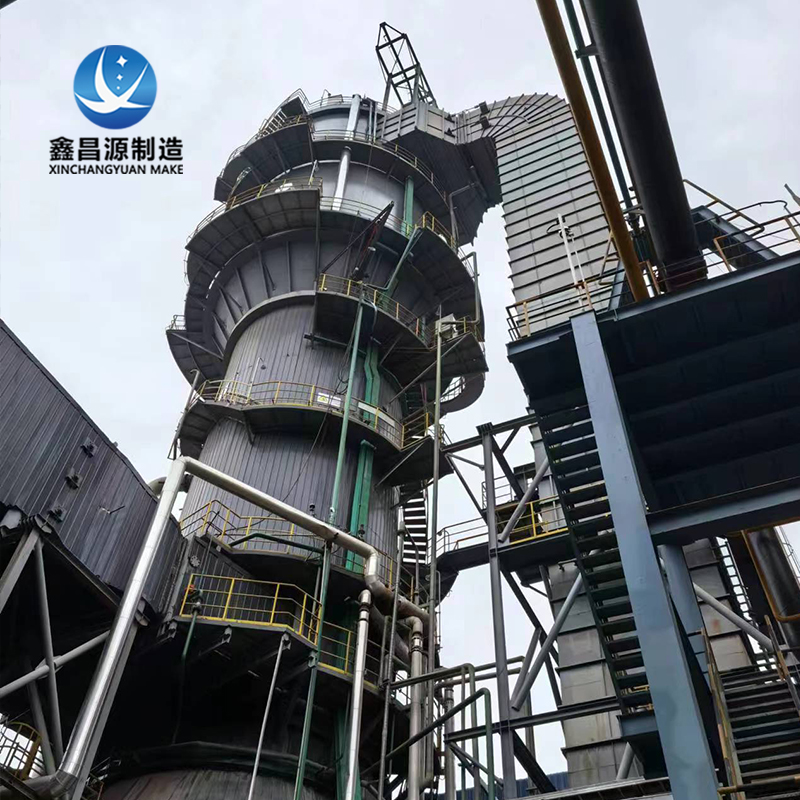

Wet Electrostatic Precipitator  (WESP) for Textile Printing & Dyeing

Product Overview

Our wet electrostatic precipitator for the textile printing and dyeing industry is a customized WESP system designed for stenter exhaust, drying exhaust, heat-setting exhaust and related process flue gas. It can be used after oil mist separators, spray towers, heat recovery units or filtration systems to perform deep purification of wet exhaust gas. The system effectively removes oil mist, acid mist, fine particulate matter, PM2.5, water droplets, aerosols and visible plume, helping textile printing and dyeing plants improve exhaust cleanliness and meet stricter emission requirements.

The equipment adopts high-voltage electrostatic adsorption combined with wet flushing. Oil mist, acid mist and fine particles are charged in the electric field, captured on the collecting electrode surface, and then washed away by circulating water. This wet cleaning method avoids dry ash accumulation and reduces the risk of secondary pollution, making it especially suitable for humid, oily and corrosive exhaust conditions commonly found in stenter and heat-setting processes.

How It Works

• Gas ionization and particle charging: High-voltage DC power generates a strong electric field between the anode tubes and cathode wires, causing gas ionization and particle charging.

• Oil mist and particulate collection: Charged oil mist, acid mist, droplets and fine particles migrate to the collecting electrode and are captured on the electrode surface.

• Wet flushing cleaning: The flushing system forms a continuous water film to wash captured pollutants into the drain, preventing oil residue buildup and secondary emission.

• Deep polishing after pretreatment: When arranged after an oil mist filter, spray tower or heat recovery system, the WESP further removes residual fine particles, mist droplets and aerosols from wet exhaust gas.

Key Features

• High oil mist and PM2.5 removal efficiency: effectively captures oil mist, submicron particles, acid mist, droplets and aerosols from stenter and drying exhaust.

• No secondary dust emission: wet flushing replaces mechanical rapping, improving outlet cleanliness and long-term operational stability.

• Strong adaptability to textile exhaust: suitable for stenter, heat-setting and drying exhaust with high humidity, oil content and fluctuating working conditions.

• Stainless steel anode tube modules: anode modules, shell and internal components can be made from stainless steel or other corrosion-resistant materials according to exhaust properties.

• Flexible structural layout: available in vertical or horizontal type, with circular or square shell, and can be integrated with existing oil mist recovery, spray tower and heat recovery systems.

• Customized engineering supply: configured according to actual air volume, temperature, oil mist concentration, humidity and emission targets.

Typical Applications

• Stenter exhaust purification in textile printing and dyeing plants

• Heat-setting and drying exhaust treatment

• Deep purification after oil mist separator, spray tower or heat recovery unit

• Removal of oil mist, acid mist, PM2.5, droplets and aerosols

• Visible plume reduction and exhaust polishing for printing and dyeing workshops

• Environmental upgrading projects for textile printing and dyeing enterprises

Manufacturing & Customization

Wuxi Xinchangyuan Equipment Manufacturing Co., Ltd. manufactures stainless steel WESP modules and supporting components for industrial flue gas and exhaust treatment. The company’s capabilities include laser cutting, CNC shearing, CNC press brake forming, plate rolling, automatic welding and on-site assembly. Stainless steel anode tube modules, cathode systems, flushing systems and shell structures can be customized according to project air volume, installation space and process conditions, supporting both new textile exhaust systems and retrofit projects.

FAQ

Can the WESP be installed after an existing oil mist filter or spray tower?
Yes. It is commonly arranged after oil mist separators, spray towers, heat recovery units or filtration systems to perform terminal deep purification.

What pollutants can it remove?
It mainly removes oil mist, acid mist, fine particulate matter, PM2.5, water droplets, aerosols and visible plume from wet textile exhaust gas.

What materials can be used?
Anode modules, shell and internal components can be made from stainless steel or other corrosion-resistant materials based on exhaust composition and customer requirements.

Is the equipment available in different structures?
Yes. It can be supplied in vertical or horizontal structure, with circular or square shell, and can be customized according to site conditions.
