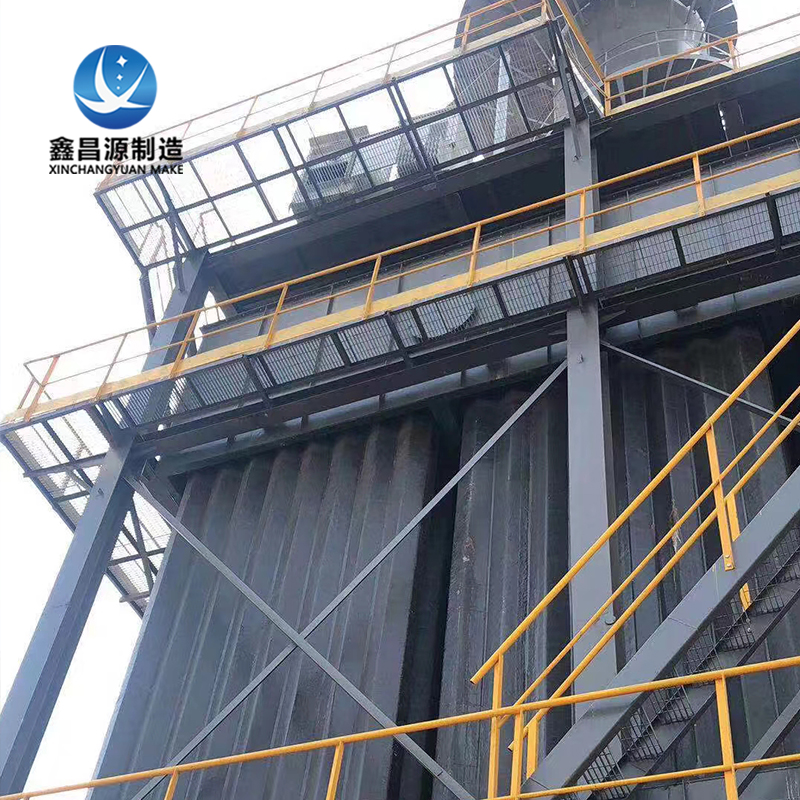

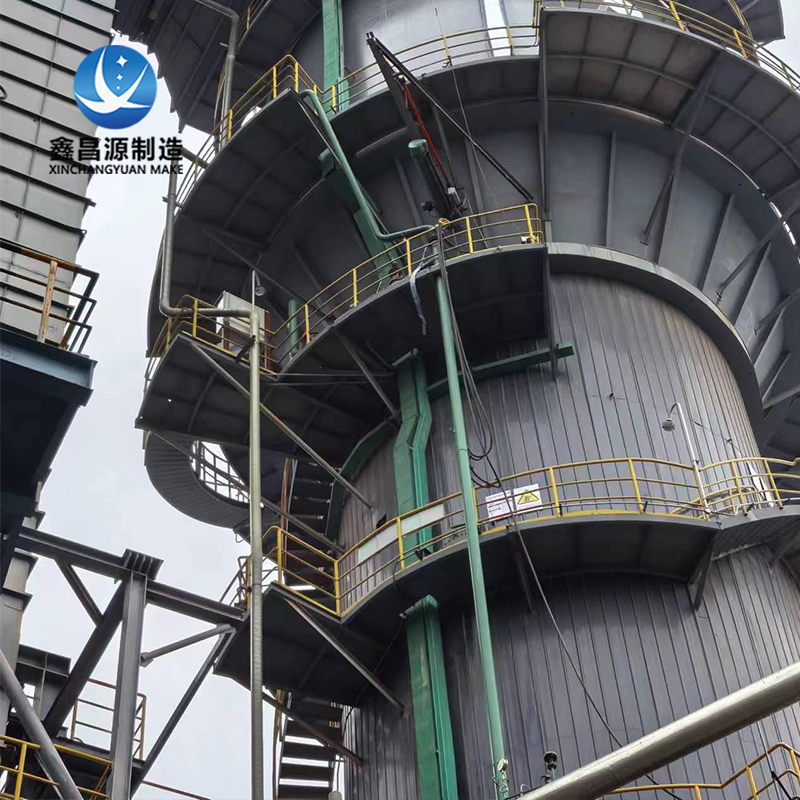

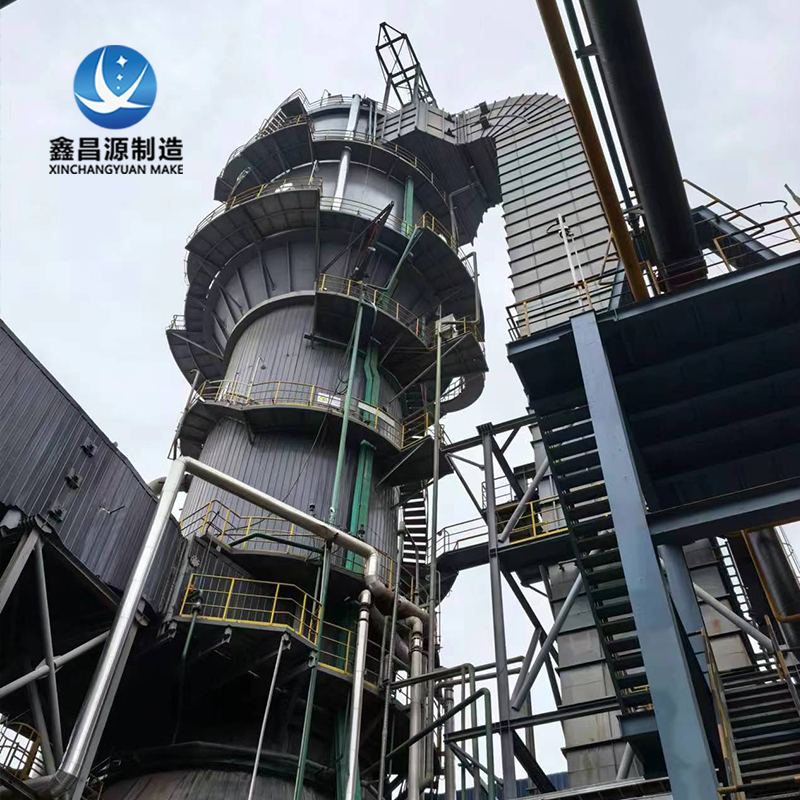

Wet Electrostatic Precipitator  (WESP) for Coking Plants

Product Overview

Our wet electrostatic precipitator for coking plants is a customized WESP system designed for coke oven gas purification, coking flue gas treatment and downstream deep cleaning after desulfurization or washing systems. It can effectively remove tar mist, fine particulate matter, PM2.5, acid mist, water droplets, aerosols and other condensable pollutants from wet flue gas, helping coking plants achieve stable ultra-low emission performance.

The equipment uses high-voltage electrostatic adsorption combined with wet flushing. Pollutants are charged in the electric field, captured on the collecting electrode surface, and then washed away by circulating water. This wet cleaning method avoids mechanical rapping and reduces the risk of secondary dust emission, making it especially suitable for high-humidity, sticky and tar-containing flue gas conditions commonly found in coking processes.

How It Works

• Gas ionization and particle charging: High-voltage DC power generates a strong electric field between the anode tubes and cathode wires, causing gas ionization and particle charging.

• Tar mist and particulate collection: Charged tar mist, dust, acid mist and droplets migrate to the collecting electrode and are captured on the electrode surface.

• Wet flushing cleaning: The flushing system forms a continuous water film to wash captured pollutants into the drain, preventing tar accumulation and secondary dust.

• Deep purification after pretreatment: When arranged after a desulfurization tower, spray tower or gas washing system, the WESP further removes residual fine particles, tar mist, droplets and aerosols from wet flue gas.

Key Features

• High tar mist and PM2.5 removal efficiency: effectively captures tar mist, submicron particles, acid mist, droplets and aerosols from coking flue gas.

• No secondary dust emission: wet flushing replaces mechanical rapping, improving outlet cleanliness and operational stability.

• Strong adaptability to coking plant flue gas: suitable for coke oven gas and coking exhaust with high moisture, sticky tar mist and fluctuating working conditions.

• Stainless steel anode tube modules: anode modules, shell and internal components can be made from stainless steel or other corrosion-resistant materials according to flue gas properties.

• Flexible structural layout: available in vertical or horizontal type, with circular or square shell, and can be integrated with existing desulfurization, washing and dust removal systems.

• Customized engineering supply: configured according to actual air volume, temperature, humidity, tar content and emission requirements.

Typical Applications

• Coke oven gas purification and tar mist removal

• Coking plant flue gas deep treatment

• Wet electrostatic precipitation after desulfurization tower or spray tower

• Removal of PM2.5, tar mist, acid mist, droplets and aerosols

• Coking plant environmental upgrading and ultra-low emission renovation projects

Manufacturing & Customization

Wuxi Xinchangyuan Equipment Manufacturing Co., Ltd. manufactures stainless steel WESP modules and supporting components for coking plant flue gas treatment. The company’s capabilities include laser cutting, CNC shearing, CNC press brake forming, plate rolling, automatic welding and on-site assembly. Stainless steel anode tube modules, cathode systems, flushing systems and shell structures can be customized according to project air volume, installation space and process conditions, supporting both new coking lines and retrofit projects.

FAQ

Can the coking plant WESP be installed after an existing desulfurization system?
Yes. It is commonly arranged after cyclone collectors, spray towers, desulfurization systems or gas washing units to perform terminal deep purification of wet flue gas.

What pollutants can it remove?
It mainly removes tar mist, fine particulate matter, PM2.5, acid mist, water droplets, aerosols and other condensable pollutants from wet coking flue gas.

What materials can be used?
Anode modules, shell and internal components can be made from stainless steel or other corrosion-resistant materials based on flue gas composition and customer requirements.

Is the equipment available in different structures?
Yes. It can be supplied in vertical or horizontal structure, with circular or square shell, and can be customized according to site conditions.
