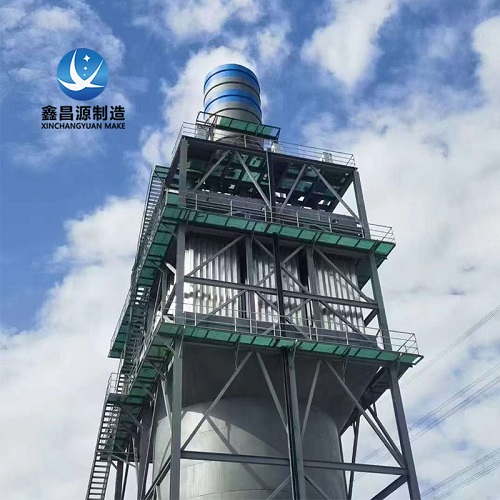

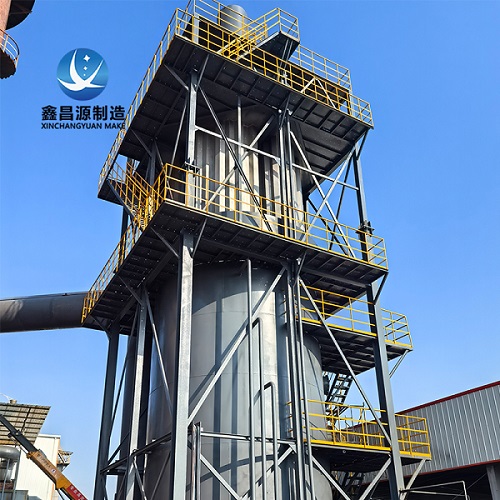

Wet Electrostatic Precipitator

Product Overview

A wet electrostatic precipitator is a high-efficiency terminal purification system used to remove fine particulate matter, PM2.5, acid mist, water droplets, aerosols and other condensable pollutants from wet industrial flue gas. It is typically installed after bag filters, cyclone separators, spray towers, scrubbers or desulfurization systems, and is widely applied in coal-fired boilers, biomass boilers, steel plants, chemical plants, waste incineration plants, lime kilns, ceramic kilns, carbon plants, textile printing and dyeing plants and other industrial processes.

The equipment uses high-voltage electrostatic adsorption combined with wet flushing. Flue gas passes through a high-voltage electric field, where fine particles and mist droplets are charged, captured on the collecting electrode surface, and then washed away by circulating water. This wet cleaning method avoids mechanical rapping and reduces the risk of secondary dust emission, making it especially suitable for high-humidity, corrosive and sticky flue gas conditions.

How It Works

• Gas ionization and particle charging: High-voltage DC power generates a strong electric field between the anode tubes/plates and cathode wires, causing gas ionization and particle charging.

• Fine particle and mist collection: Charged PM2.5, acid mist, droplets, aerosols and fine dust migrate to the collecting electrode and are captured on the electrode surface.

• Wet flushing cleaning: The flushing system forms a continuous water film to wash captured pollutants into the drain, preventing ash or residue buildup and avoiding secondary dust.

• Terminal polishing after pretreatment: When arranged after a bag filter, spray tower, scrubber or desulfurization system, the WESP further removes residual fine particles, mist droplets and aerosols from wet flue gas.

Key Features

• High removal efficiency for fine particles: effectively captures PM2.5, submicron particles, acid mist, droplets and aerosols from wet industrial flue gas.

• No secondary dust emission: wet flushing replaces mechanical rapping, improving outlet cleanliness and operational stability.

• Strong adaptability to wet flue gas: suitable for high-humidity, corrosive, sticky and fluctuating exhaust conditions commonly found after desulfurization or scrubbing.

• Stainless steel anode tube modules: anode modules, shell and internal components can be made from stainless steel or other corrosion-resistant materials according to flue gas properties.

• Flexible structural layout: available in vertical or horizontal type, with circular or square shell, and can be integrated with existing dust removal and desulfurization systems.

• Customized engineering supply: configured according to actual air volume, temperature, humidity, dust load and emission requirements.

Typical Applications

• Coal-fired and biomass boiler flue gas polishing

• Steel plant sintering, roasting and process exhaust treatment

• Chemical plant acid mist and aerosol control

• Waste incineration plant flue gas terminal purification

• Lime kiln, ceramic kiln and industrial kiln exhaust treatment

• Deep purification after bag filter, spray tower, scrubber or desulfurization system

• Removal of PM2.5, acid mist, droplets, aerosols and visible plume

• Industrial environmental upgrading and ultra-low emission renovation projects

Manufacturing & Customization

Wuxi Xinchangyuan Equipment Manufacturing Co., Ltd. manufactures stainless steel wet electrostatic precipitator modules and supporting components for industrial flue gas and exhaust treatment. The company’s capabilities include laser cutting, CNC shearing, CNC press brake forming, plate rolling, automatic welding and on-site assembly. Stainless steel anode tube modules, cathode systems, flushing systems and shell structures can be customized according to project air volume, installation space and process conditions, supporting both new systems and retrofit projects.

FAQ

What is a wet electrostatic precipitator used for?
It is used for terminal deep purification of wet industrial flue gas, mainly removing PM2.5, acid mist, water droplets, aerosols and fine particulate matter.

Where is the WESP usually installed?
It is commonly installed after bag filters, spray towers, scrubbers or desulfurization systems to polish wet flue gas before discharge.

What materials can be used?
Anode modules, shell and internal components can be made from stainless steel or other corrosion-resistant materials based on flue gas composition and customer requirements.

Is the equipment available in different structures?
Yes. It can be supplied in vertical or horizontal structure, with circular or square shell, and can be customized according to site conditions.
