Wet Electrostatic Precipitator (WESP) for Lithium Battery Plants

Product Overview

Our wet electrostatic precipitator for lithium battery plants is a customized WESP system designed for lithium battery material production lines. It can be applied to cathode material calcining and sintering exhaust, roasting furnace flue gas, precursor drying exhaust, coating and drying sections, and downstream wet flue gas after scrubbing, absorption or desulfurization systems. The equipment is typically installed after cyclone separators, spray towers, absorption towers, bag filters or other pretreatment units to perform terminal deep purification of wet process exhaust. It helps lithium battery material plants control submicron lithium salt dust, fluoride mist, acid mist, PM2.5, tar mist, water droplets, aerosols and visible plume, supporting stricter emission compliance and cleaner production.

The equipment adopts high-voltage electrostatic adsorption combined with wet flushing. Fine particles, acid mist and aerosols are charged in the electric field, captured on the collecting electrode surface, and then washed away by circulating water. This wet cleaning method avoids mechanical rapping and reduces the risk of secondary dust emission, making it especially suitable for high-humidity, corrosive and sticky exhaust conditions commonly found in lithium battery material processes.

How It Works

• Gas ionization and particle charging: High-voltage DC power generates a strong electric field between the anode tubes and cathode wires, causing gas ionization and particle charging.

• Fine particle and mist collection: Charged lithium salt dust, fluoride mist, acid mist, PM2.5, tar mist, droplets and aerosols migrate to the collecting electrode and are captured on the electrode surface.

• Wet flushing cleaning: The flushing system forms a continuous water film to wash captured pollutants into the drain, preventing salt accumulation, tar adhesion and secondary dust.

• Deep polishing after pretreatment: When arranged after a spray tower, absorption tower, scrubber, bag filter or desulfurization system, the WESP further removes residual fine particles, mist droplets and aerosols from wet lithium battery plant exhaust.

Key Features

• High removal efficiency for fine battery material aerosols: effectively captures submicron lithium salt dust, fluoride mist, acid mist, PM2.5, tar mist, droplets and aerosols.

• No secondary dust emission: wet flushing replaces mechanical rapping, improving outlet cleanliness and operational stability.

• Strong adaptability to corrosive lithium battery exhaust: suitable for calcining, sintering, roasting, drying and precursor-related exhaust with moisture, acidic components and fluctuating working conditions.

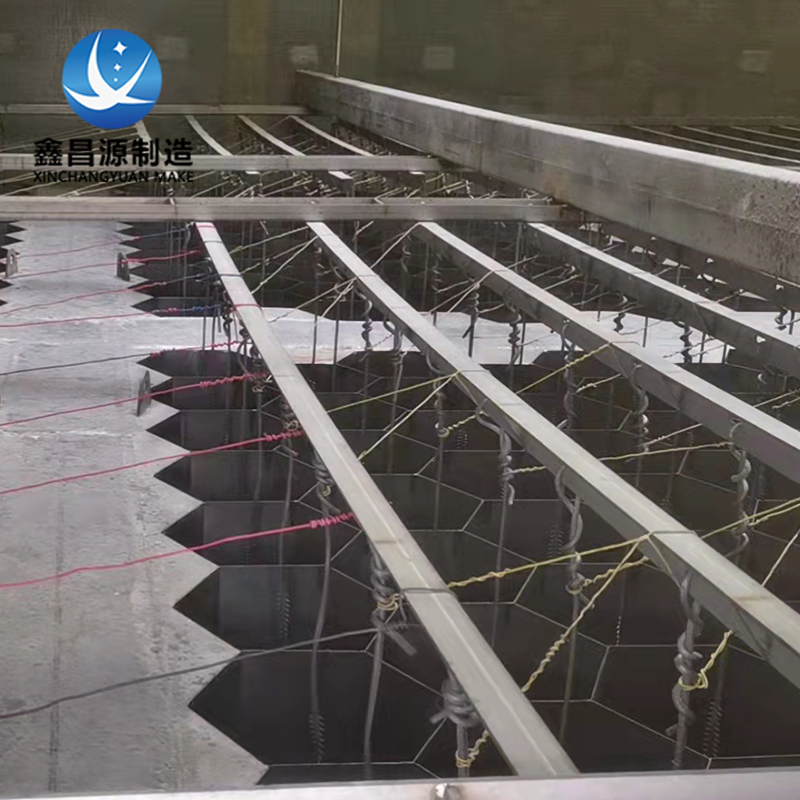

• Stainless steel anode tube modules: anode modules, shell and internal components can be made from stainless steel or other corrosion-resistant materials according to flue gas properties.

• Flexible structural layout: available in vertical or horizontal type, with circular or square shell, and can be integrated with existing dust removal, absorption and waste gas treatment systems.

• Customized engineering supply: configured according to actual air volume, temperature, humidity, dust/mist load and emission requirements.

Typical Applications

• Cathode material calcining and sintering exhaust treatment

• Roasting furnace and precursor drying exhaust purification

• Coating, drying and solvent recovery exhaust polishing

• Deep purification after spray tower, absorption tower, scrubber or desulfurization system

• Removal of lithium salt dust, fluoride mist, acid mist, PM2.5, tar mist, droplets and aerosols

• Visible plume reduction and terminal polishing for lithium battery material plants

Manufacturing & Customization

Wuxi Xinchangyuan Equipment Manufacturing Co., Ltd. manufactures stainless steel WESP modules and supporting components for industrial flue gas and exhaust treatment. The company’s capabilities include laser cutting, CNC shearing, CNC press brake forming, plate rolling, automatic welding and on-site assembly. Stainless steel anode tube modules, cathode systems, flushing systems and shell structures can be customized according to project air volume, installation space and process conditions, supporting both new lithium battery material lines and retrofit projects.

FAQ

Can the lithium battery plant WESP be installed after an existing scrubber or absorption tower?
Yes. It is commonly arranged after spray towers, absorption towers, scrubbers, bag filters or desulfurization systems to perform terminal deep purification of wet flue gas.

What pollutants can it remove?
It mainly removes submicron lithium salt dust, fluoride mist, acid mist, PM2.5, tar mist, water droplets, aerosols and other condensable pollutants from wet lithium battery material exhaust.

What materials can be used?
Anode modules, shell and internal components can be made from stainless steel or other corrosion-resistant materials based on exhaust composition and customer requirements.

Is the equipment available in different structures?
Yes. It can be supplied in vertical or horizontal structure, with circular or square shell, and can be customized according to site conditions.
