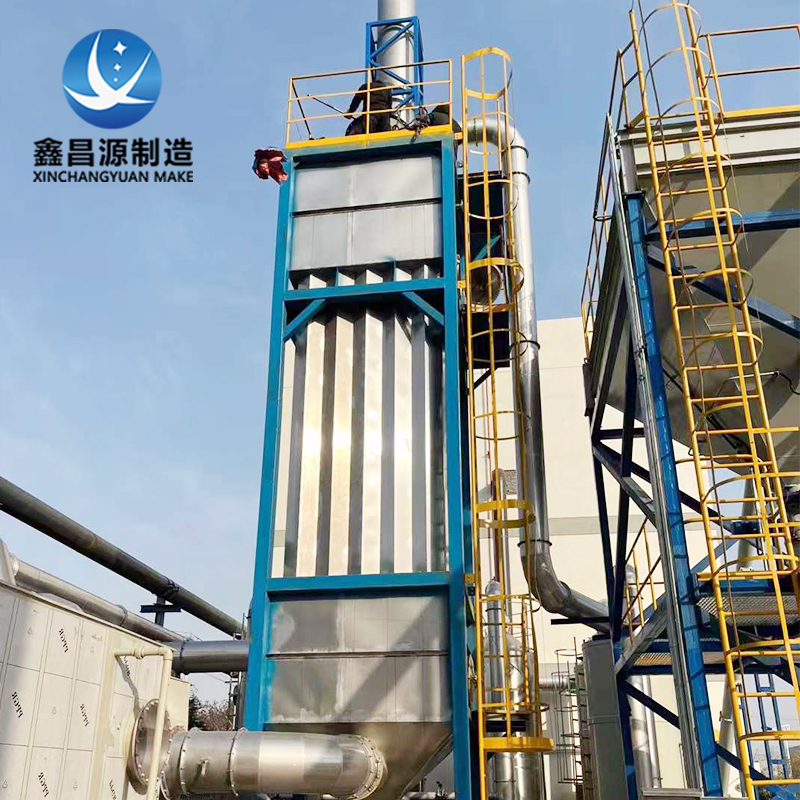

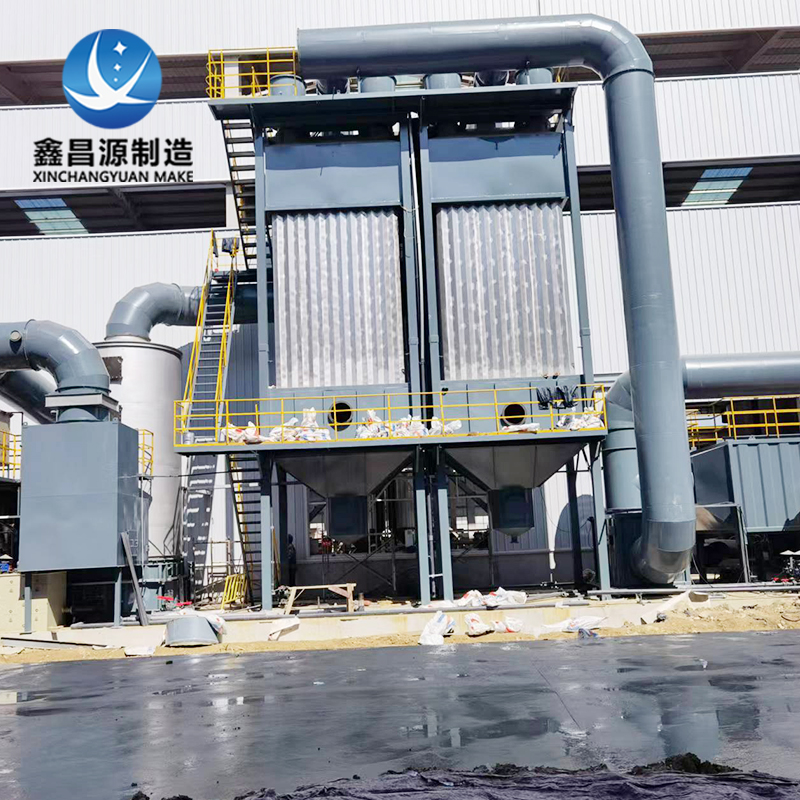

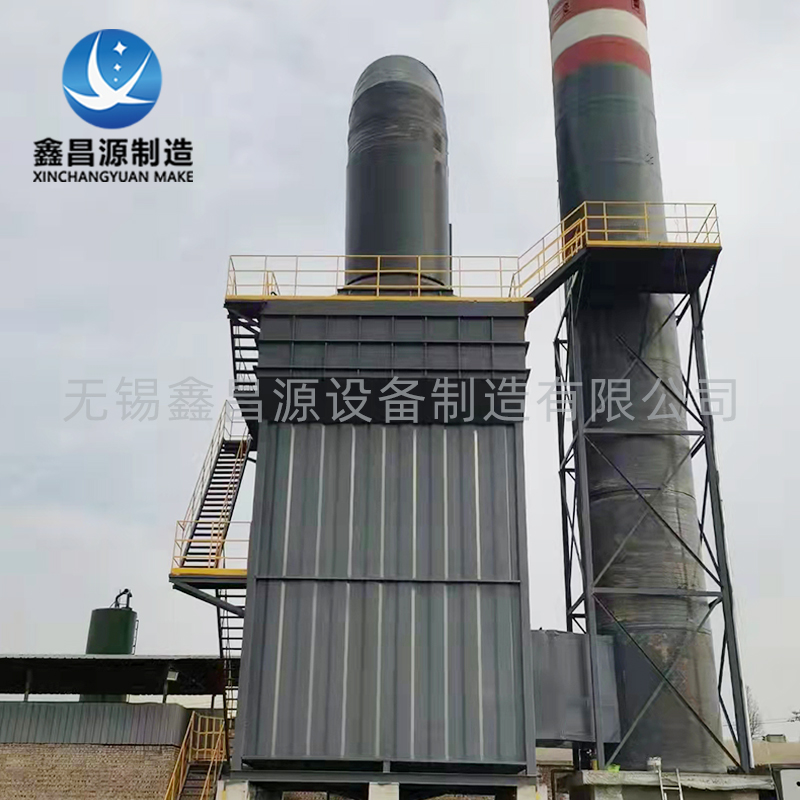

Wet Electrostatic Precipitator for Brick Plants

Product Overview

Our wet electrostatic precipitator for brick plants is a customized WESP system designed for tunnel kiln, rotary kiln, brick kiln and brickworks flue gas treatment. It can be applied to sintering and roasting exhaust, drying section exhaust, raw material processing flue gas, and downstream wet flue gas after cyclone separators, bag filters, spray towers, scrubbers or wet desulfurization systems. The equipment is typically installed after primary dust removal or wet treatment units to perform terminal deep purification of wet process exhaust. It helps brick plants control PM2.5, acid mist, fluoride mist, SO₃ mist, water droplets, aerosols and visible plume, supporting stricter emission compliance and cleaner production.

The equipment adopts high-voltage electrostatic adsorption combined with wet flushing. Fine particles, acid mist and aerosols are charged in the electric field, captured on the collecting electrode surface, and then washed away by circulating water. This wet cleaning method avoids mechanical rapping and reduces the risk of secondary dust emission, making it especially suitable for high-humidity, corrosive and sticky exhaust conditions commonly found in brick kiln and tunnel kiln processes.

How It Works

• Gas ionization and particle charging: High-voltage DC power generates a strong electric field between the anode tubes and cathode wires, causing gas ionization and particle charging.

• Fine particle and mist collection: Charged PM2.5, acid mist, fluoride mist, SO₃ mist, droplets and aerosols migrate to the collecting electrode and are captured on the electrode surface.

• Wet flushing cleaning: The flushing system forms a continuous water film to wash captured pollutants into the drain, preventing salt accumulation, tar adhesion and secondary dust.

• Deep polishing after pretreatment: When arranged after a cyclone separator, bag filter, spray tower, scrubber or desulfurization system, the WESP further removes residual fine particles, mist droplets and aerosols from wet brick plant exhaust.

Key Features

• High removal efficiency for fine brick kiln aerosols: effectively captures PM2.5, submicron particles, acid mist, fluoride mist, SO₃ mist, droplets and aerosols.

• No secondary dust emission: wet flushing replaces mechanical rapping, improving outlet cleanliness and operational stability.

• Strong adaptability to high-humidity brick kiln exhaust: suitable for tunnel kiln, rotary kiln and brick kiln flue gas with high moisture, corrosive components and fluctuating working conditions.

• Stainless steel anode tube modules: anode modules, shell and internal components can be made from stainless steel or other corrosion-resistant materials according to flue gas properties.

• Flexible structural layout: available in vertical or horizontal type, with circular or square shell, and can be integrated with existing dust removal, desulfurization and waste gas treatment systems.

• Customized engineering supply: configured according to actual air volume, temperature, humidity, dust/mist load and emission requirements.

Typical Applications

• Tunnel kiln and rotary kiln sintering exhaust treatment

• Brick kiln drying and roasting flue gas purification

• Raw material crushing, mixing and成型 section exhaust polishing

• Deep purification after cyclone separator, bag filter, spray tower, scrubber or desulfurization system

• Removal of PM2.5, acid mist, fluoride mist, SO₃ mist, droplets and aerosols

• Visible plume reduction and terminal polishing for brick plant environmental upgrading projects

Manufacturing & Customization

Wuxi Xinchangyuan Equipment Manufacturing Co., Ltd. manufactures stainless steel WESP modules and supporting components for industrial flue gas and exhaust treatment. The company’s capabilities include laser cutting, CNC shearing, CNC press brake forming, plate rolling, automatic welding and on-site assembly. Stainless steel anode tube modules, cathode systems, flushing systems and shell structures can be customized according to project air volume, installation space and process conditions, supporting both new brick plant lines and retrofit projects.

FAQ

Can the brick plant WESP be installed after an existing bag filter or desulfurization system?
Yes. It is commonly arranged after cyclone separators, bag filters, spray towers, scrubbers or desulfurization systems to perform terminal deep purification of wet flue gas.

What pollutants can it remove?
It mainly removes PM2.5, submicron particles, acid mist, fluoride mist, SO₃ mist, water droplets, aerosols and other condensable pollutants from wet brick kiln exhaust.

What materials can be used?
Anode modules, shell and internal components can be made from stainless steel or other corrosion-resistant materials based on exhaust composition and customer requirements.

Is the equipment available in different structures?
Yes. It can be supplied in vertical or horizontal structure, with circular or square shell, and can be customized according to site conditions.
