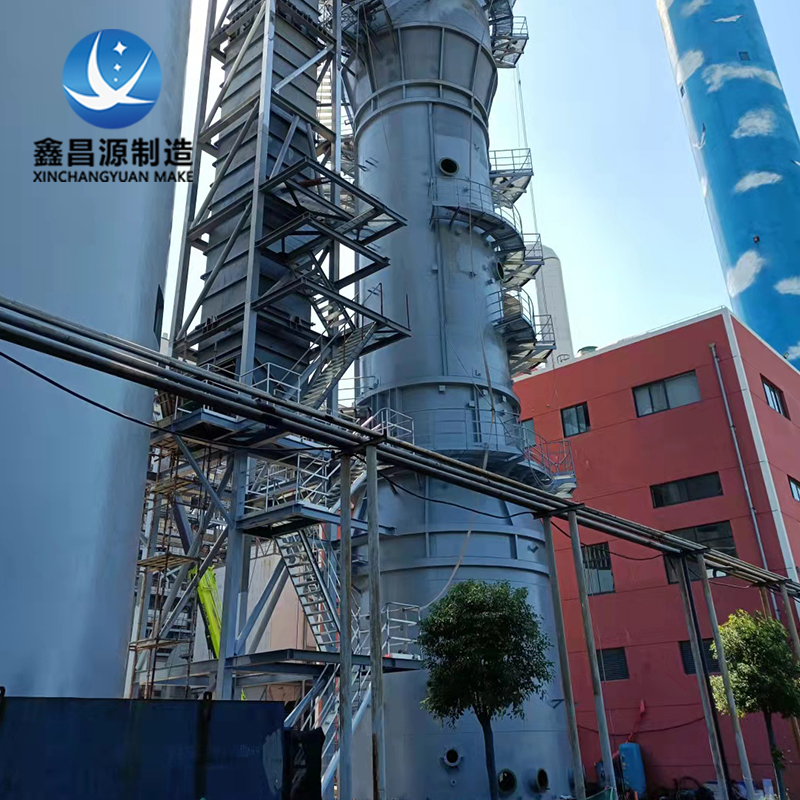

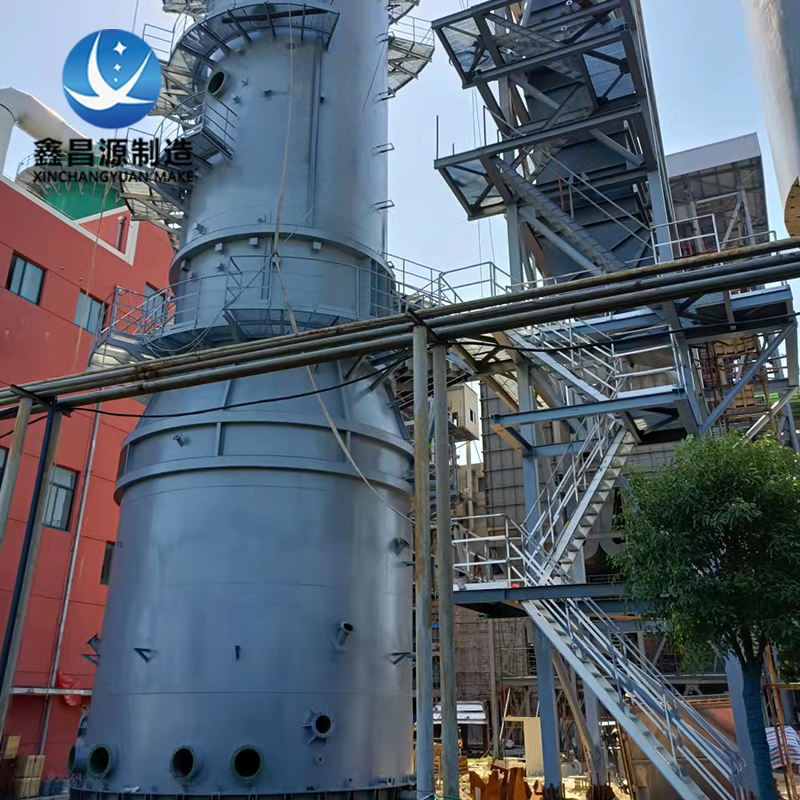

Wet Electrostatic Precipitator (WESP) for Wood Processing Plants

Product Overview

Our wet electrostatic precipitator for wood processing plants is a customized WESP system designed for timber processing, wood-based panel production, furniture manufacturing and biomass-fired boiler exhaust treatment. It can be applied to wood dust collection systems, rotary dryer exhaust, hot air drying sections, biomass boiler flue gas, and downstream wet flue gas after cyclone separators, bag filters, spray towers or scrubbers. The equipment is typically installed after primary dust removal or wet treatment units to perform terminal deep purification of process exhaust. It helps wood processing plants control wood dust, tar mist, PM2.5, water droplets, aerosols and visible plume, supporting stricter emission compliance and cleaner production.

The equipment adopts high-voltage electrostatic adsorption combined with wet flushing. Fine wood particles, tar mist and aerosols are charged in the electric field, captured on the collecting electrode surface, and then washed away by circulating water. This wet cleaning method avoids mechanical rapping and reduces the risk of secondary dust emission, making it especially suitable for high-humidity, tar-containing and sticky exhaust conditions commonly found in wood drying and biomass combustion processes.

How It Works

• Gas ionization and particle charging: High-voltage DC power generates a strong electric field between the anode tubes and cathode wires, causing gas ionization and particle charging.

• Fine particle and mist collection: Charged wood dust, tar mist, PM2.5, droplets and aerosols migrate to the collecting electrode and are captured on the electrode surface.

• Wet flushing cleaning: The flushing system forms a continuous water film to wash captured pollutants into the drain, preventing tar adhesion, wood dust accumulation and secondary dust.

• Deep polishing after pretreatment: When arranged after a cyclone separator, bag filter, spray tower or scrubber, the WESP further removes residual fine particles, tar mist, droplets and aerosols from wet wood processing exhaust.

Key Features

• High removal efficiency for fine wood aerosols: effectively captures wood dust, tar mist, PM2.5, submicron particles, droplets and aerosols from wood processing exhaust.

• No secondary dust emission: wet flushing replaces mechanical rapping, improving outlet cleanliness and operational stability.

• Strong adaptability to tar-containing and humid exhaust: suitable for wood drying, biomass boiler flue gas and wood-based panel production with high moisture, tar content and fluctuating working conditions.

• Stainless steel anode tube modules: anode modules, shell and internal components can be made from stainless steel or other corrosion-resistant materials according to flue gas properties.

• Flexible structural layout: available in vertical or horizontal type, with circular or square shell, and can be integrated with existing dust removal and waste gas treatment systems.

• Customized engineering supply: configured according to actual air volume, temperature, humidity, dust/tar load and emission requirements.

Typical Applications

• Wood dust collection and drying exhaust treatment

• Rotary dryer and hot air drying section purification

• Biomass boiler and wood-fired boiler flue gas polishing

• Wood-based panel, particleboard, fiberboard and plywood production exhaust treatment

• Furniture manufacturing and wood processing workshop exhaust purification

• Deep purification after cyclone separator, bag filter, spray tower or scrubber

• Removal of wood dust, tar mist, PM2.5, droplets and aerosols

• Visible plume reduction and terminal polishing for wood processing plant environmental upgrading projects

Manufacturing & Customization

Wuxi Xinchangyuan Equipment Manufacturing Co., Ltd. manufactures stainless steel WESP modules and supporting components for industrial flue gas and exhaust treatment. The company’s capabilities include laser cutting, CNC shearing, CNC press brake forming, plate rolling, automatic welding and on-site assembly. Stainless steel anode tube modules, cathode systems, flushing systems and shell structures can be customized according to project air volume, installation space and process conditions, supporting both new wood processing lines and retrofit projects.

FAQ

Can the wood plant WESP be installed after an existing bag filter or cyclone separator?
Yes. It is commonly arranged after cyclone separators, bag filters, spray towers or scrubbers to perform terminal deep purification of wet flue gas.

What pollutants can it remove?
It mainly removes wood dust, tar mist, PM2.5, submicron particles, water droplets, aerosols and other condensable pollutants from wet wood processing exhaust.

What materials can be used?
Anode modules, shell and internal components can be made from stainless steel or other corrosion-resistant materials based on exhaust composition and customer requirements.

Is the equipment available in different structures?
Yes. It can be supplied in vertical or horizontal structure, with circular or square shell, and can be customized according to site conditions.
