Wet Electrostatic Precipitator for Biomass Boilers

Product Overview

Our wet electrostatic precipitator for biomass boilers is a customized WESP system designed for biomass-fired boilers, biomass power plants, industrial biomass steam boilers, biomass hot water boilers and biomass thermal oil boilers. It is typically installed after cyclone separators, bag filters, spray towers, scrubbers or wet desulfurization systems to perform terminal deep purification of high-humidity, corrosive and sticky biomass boiler flue gas. The equipment helps biomass boiler systems control PM2.5, tar mist, acid mist, alkali metal salt aerosols, water droplets and fine particulate matter, supporting ultra-low emission and visible plume reduction requirements.

Biomass boiler flue gas often contains fine dust, condensable tar mist, alkali metal salts, acid gases and sticky submicron particles. These components are difficult to remove completely by conventional dry dust collectors, and they may cause bag fouling, desulfurization tower carryover or downstream equipment fouling. The WESP uses high-voltage electrostatic adsorption combined with wet flushing to capture fine mist and particles on the collecting electrode surface, then washes them away with circulating water. This wet cleaning method avoids mechanical rapping, reduces secondary dust emission and helps downstream treatment systems operate more stably.

How It Works

• Gas ionization and particle charging: High-voltage DC power generates a strong electric field between the anode tubes/plates and cathode wires, causing gas ionization and particle charging.

• PM2.5, tar mist and aerosol collection: Charged PM2.5, tar mist, acid mist, alkali metal salt aerosols, droplets and fine fly ash migrate to the collecting electrode and are captured on the electrode surface.

• Wet flushing cleaning: The flushing system forms a continuous water film to wash captured pollutants into the drain, preventing tar accumulation, salt crystallization and secondary dust.

• Terminal polishing after biomass pretreatment: When arranged after bag filters, cyclone separators, spray towers, scrubbers or wet desulfurization systems, the WESP further removes residual fine particles, mist droplets and aerosols from biomass boiler flue gas.

Key Features

• High removal efficiency for biomass aerosols: effectively captures PM2.5, submicron particles, tar mist, acid mist, alkali salt aerosols, droplets and condensable pollutants.

• No secondary dust emission: wet flushing replaces mechanical rapping, improving outlet cleanliness and operational stability.

• Strong adaptability to sticky and high-humidity flue gas: suitable for biomass boiler exhaust with tar mist, moisture, alkali salts and fluctuating working conditions.

• Stainless steel anode tube modules: anode modules, shell and internal components can be made from stainless steel or other corrosion-resistant materials according to flue gas composition.

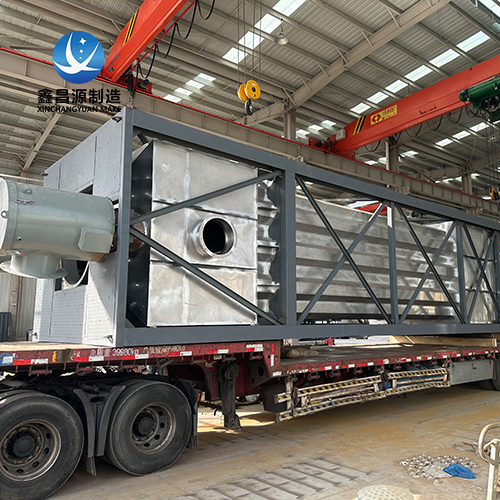

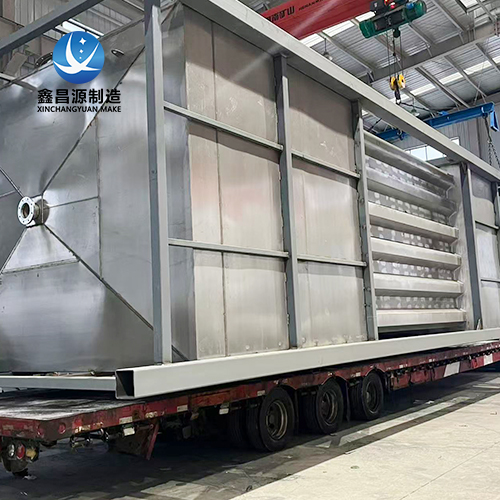

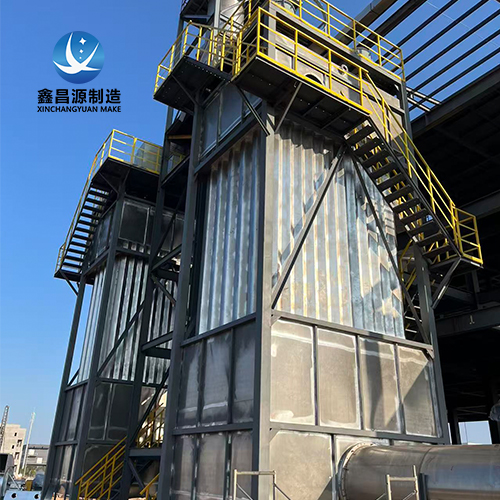

• Flexible structural layout: available in vertical or horizontal type, with circular or square shell, and can be integrated with existing boiler dust removal, desulfurization and denitrification systems.

• Customized engineering supply: configured according to actual flue gas volume, temperature, humidity, tar/alkali content, mist load, installation space and emission requirements.

Typical Applications

• Biomass-fired boiler and biomass power plant flue gas treatment

• Industrial biomass steam boiler, hot water boiler and thermal oil boiler exhaust polishing

• Deep purification after bag filter, cyclone separator, spray tower, scrubber or wet desulfurization system

• Removal of PM2.5, tar mist, acid mist, alkali metal salt aerosols, droplets and fine particulate matter

• Visible plume control and stack emission polishing for biomass boiler environmental upgrading projects

• Terminal polishing for biomass boiler ultra-low emission retrofit projects

Manufacturing & Customization

Wuxi Xinchangyuan Equipment Manufacturing Co., Ltd. manufactures stainless steel WESP modules and supporting components for industrial flue gas and exhaust treatment. Our capabilities include laser cutting, CNC shearing, CNC press brake forming, plate rolling, automatic welding and on-site assembly. Stainless steel anode tube modules, cathode systems, flushing systems and shell structures can be customized according to project flue gas volume, installation space and process conditions, supporting both new biomass boiler projects and retrofit projects.

FAQ

Where is the biomass boiler WESP typically installed?
It is usually installed after bag filters, cyclone separators, spray towers, scrubbers or wet desulfurization systems for terminal deep purification of biomass boiler flue gas.

What pollutants can it remove?
It mainly removes PM2.5, tar mist, acid mist, alkali metal salt aerosols, water droplets, condensable particulate matter and fine fly ash from biomass boiler exhaust.

Can it handle sticky tar mist?
Yes. The wet flushing system washes captured tar mist and sticky particles away continuously, helping to prevent electrode fouling and maintain stable operation.

What materials are used?
Anode modules, shell and internal components can be made from stainless steel or other corrosion-resistant materials based on flue gas composition and customer requirements.

Is the equipment available in different structures?
Yes. It can be supplied in vertical or horizontal structure, with circular or square shell, and can be customized according to site conditions.
